Filters and thresholding

Last updated on 2024-08-16 | Edit this page

Estimated time: 60 minutes

Overview

Questions

  • How can thresholding be used to create masks?
  • What are filters and how do they work?

Objectives

  • Threshold an image manually using its histogram, and display the result in Napari

  • Use some Napari plugins to perform two commonly used image processing steps: gaussian blurring and otsu thresholding

  • Explain how filters work - e.g. what is a kernel? What does the ‘sigma’ of a gaussian blur change?

  • Explain the difference between Napari’s .add_labels() and .add_image()

In the previous episode, we started to develop an image processing workflow to count the number of cells in an image. Our initial pipeline relied on manual segmentation:

  1. Quality Control
  2. Manual segmentation of nuclei
  3. Count nuclei

There are a number of issues with relying on manual segmentation for this task. For example, as covered in the previous episode, it is difficult to keep manual segmentation fully consistent. If you ask someone to segment the same cell multiple times, the result will always be slightly different. Also, manual segmentation is very slow and time consuming! While it is feasible for small images in small quantities, it would take much too long for large datasets of hundreds or thousands of images.

This is where we need to introduce more automated methods, which we will start to look at in this episode. Most importantly, using more automated methods has the benefit of making your image processing more reproducible - by having a clear record of every step that produced your final result, it will be easier for other researchers to replicate your work and also try similar methods on their own data.

Thresholding


If you don’t have Napari’s ‘Cells (3D + 2Ch)’ image open, then open it with:
File > Open Sample > napari builtins > Cells (3D + 2Ch)

Make sure you only have ‘nuclei’ in the layer list. Select any additional layers, then click the A screenshot of Napari's delete layer button icon to remove them. Also, select the nuclei layer (should be highlighted in blue), and change its colormap from ‘green’ to ‘gray’ in the layer controls.

A screenshot of nuclei in Napari using  the gray colormap

Now let’s look at how we can create a mask of the nuclei. Recall from the last episode, that a ‘mask’ is a segmentation with only two labels - background + your class of interest (in this case nuclei).

A simple approach to create a mask is to use a method called ‘thresholding’. Thresholding works best when there is a clear separation in pixel values between the class of interest and the rest of the image. In these cases, thresholding involves choosing one or more specific pixel values to use as the cut-off between background and your class of interest. For example, in this image, you could choose a pixel value of 100 and set all pixels with a value less than that as background, and all pixels with a value greater than that as nuclei. How do we go about choosing a good threshold though?

One common approach to choosing a threshold is to use the image histogram - recall that we looked at histograms in detail in the image display episode. Let’s go ahead and open a histogram with:
Plugins > napari Matplotlib > Histogram

A histogram of the 29th z slice of Napari's  cell sample image

From this histogram, we can see two peaks - a larger one at low intensity, then a smaller one at higher intensity. Looking at the image, it would make sense if the lower intensity peak represented the background, with the higher one representing the nuclei. We can verify this by adjusting the contrast limits in the layer controls. If we move the left contrast limits node to the right of the low intensity peak (around 8266), we can still clearly see the nuclei:

Left, nuclei with gray colormap.  Right, histogram of the same image. Both with left contrast limit set  to 8266.

If we move the left contrast limits node to the right of the higher intensity peak (around 28263), most of the nuclei disappear from the image:

Left, nuclei with gray colormap.  Right, histogram of the same image. Both with left contrast limit set  to 28263.

Recall that you can set specific values for the contrast limits by right clicking on the contrast limits slider in Napari.

This demonstrates that the higher intensity peak is the one we are interested in, and we should set our threshold accordingly.

We can set this threshold with some commands in Napari’s console:

PYTHON


# Get the image data for the nuclei
nuclei = viewer.layers["nuclei"].data

# Create mask with a threshold of 8266
mask = nuclei > 8266

# Add mask to the Napari viewer
viewer.add_labels(mask)

You should see a mask appear that highlights the nuclei in brown. If we set the nuclei contrast limits back to normal (select ‘nuclei’ in the layer list, then drag the left contrast limits node back to zero), then toggle on/off the mask or nuclei layers with the A screenshot of Napari's eye button icon, you should see that the brown areas match the nucleus boundaries reasonably well. They aren’t perfect though! The brown regions have a speckled appearance where some regions inside nuclei aren’t labelled and some areas in the background are incorrectly labelled.

Mask of nuclei (brown) overlaid on nuclei  image - created with manual thresholding

This is mostly due to the presence of noise in our image (as we looked at in the choosing acquisition settings episode). For example, the dark image background isn’t completely uniform - there are random fluctuations in the pixel values giving it a ‘grainy’ appearance when we zoom in. These fluctuations in pixel value make it more difficult to set a threshold that fully separates the nuclei from the background. For example, background pixels that are brighter than average may exceed our threshold of 8266, while some nuclei pixels that are darker than average may fall below it. This is the main cause of the speckled appearance of some of our mask regions.

To improve the mask we must find a way to reduce these fluctuations in pixel value. This is usually achieved by blurring the image (also referred to as smoothing). We’ll look at this in detail later in the episode.

.add_labels() vs .add_image

In the code blocks above, you will notice that we use .add_labels(), rather than .add_image() as we have in previous episodes. .add_labels() will ensure our mask is added as a Labels layer, giving us access to all the annotation tools and settings for segmentations (as covered in the manual segmentation episode). add_image() would create a standard Image layer, which doesn’t give us easy access to the annotation tools.

Manual thresholds

In this exercise, we’ll practice choosing manual thresholds based on an image’s histogram. For this, we’ll use a simple test image containing three shapes (rectangle, circle and triangle) with different mean intensities.

Copy and paste the following into Napari’s console to generate and load this test image:

PYTHON

import numpy as np
import skimage
from skimage.draw import disk, polygon
from skimage.util import random_noise, img_as_ubyte
from packaging import version

image = np.full((100, 100), 10, dtype="uint8")
image[10:50, 20:80] = 80
image[disk((75, 75), 15)] = 140
rr, cc = polygon([90, 60, 90], [10, 30, 50])
image[rr, cc] = 200
if version.parse(skimage.__version__) < version.parse("0.21"):
  image = img_as_ubyte(random_noise(image, var=0.0005, seed=6))
else:
  image = img_as_ubyte(random_noise(image, var=0.0005, rng=6))
viewer.add_image(image)

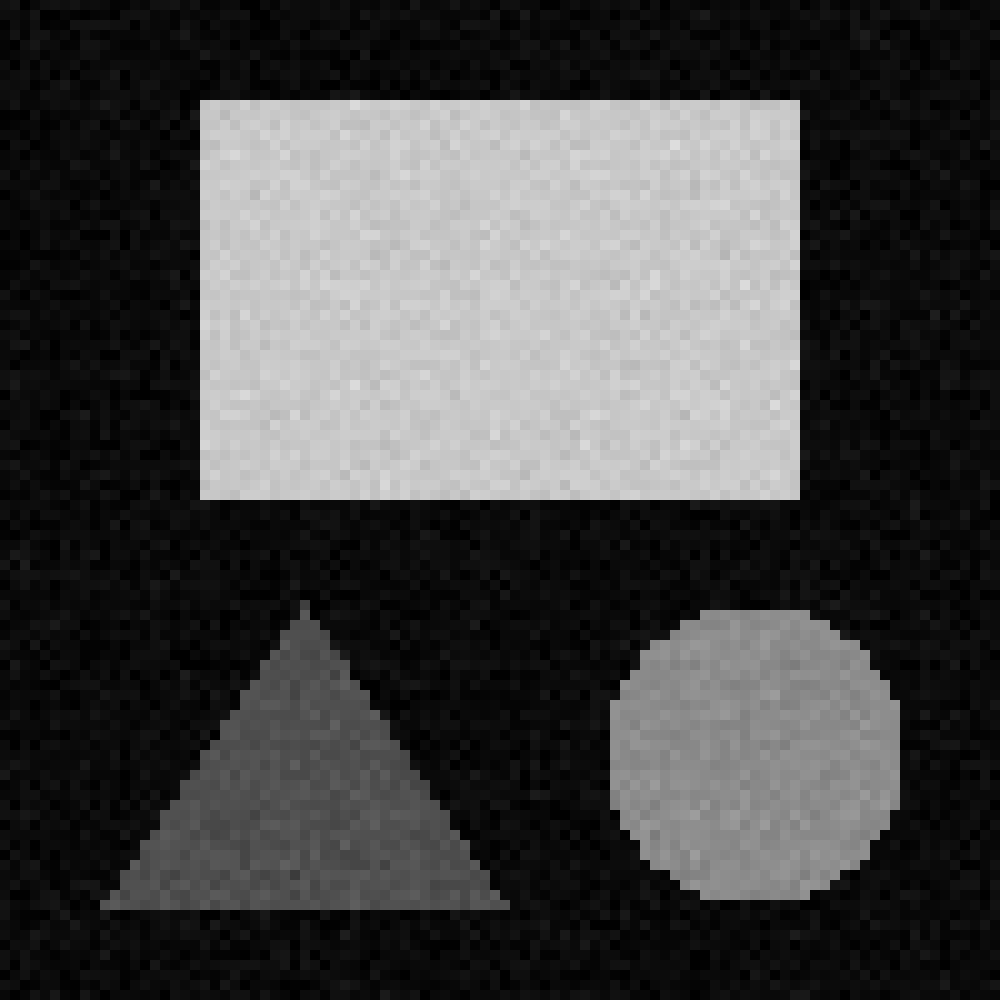

Test image containing a  rectangle, circle and triangle

Create a mask for each shape by choosing thresholds based on the image’s histogram. You can set a threshold as all pixels above a certain value:

PYTHON

mask = image > 40
viewer.add_labels(mask)

Or all pixels below a certain value:

PYTHON

mask = image < 40
viewer.add_labels(mask)

Or all pixels between two values:

PYTHON

mask = (image > 20) & (image < 40)
viewer.add_labels(mask)

First, we show a histogram for the image by selecting the ‘image’ layer, then:
Plugins > napari Matplotlib > Histogram

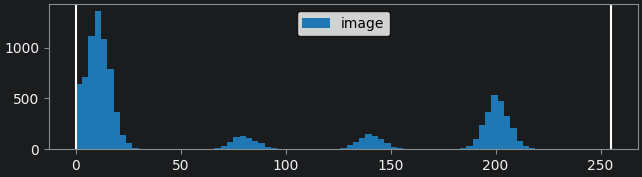

Histogram of the  shape image

By moving the left contrast limits node we can figure out what each peak represents. You should see that the peaks from left to right are:

  • background
  • rectangle
  • circle
  • triangle

Then we set thresholds for each (as below). Note that you may not have exactly the same threshold values as we use here! There are many different values that can give good results, as long as they fall in the gaps between the peaks in the image histogram.

PYTHON

rectangle = (image > 53) & (image < 110)
viewer.add_labels(rectangle)

circle = (image > 118) & (image < 166)
viewer.add_labels(circle)

triangle = image > 171
viewer.add_labels(triangle)

Adding plugins to help with segmentation


Fortunately for us, segmenting images in the presence of noise is a widely studied problem, so there are a many existing plugins we can install to help. If you need a refresher on the details of how to find and install plugins in Napari, see the image display episode.

We will use two plugins: napari-segment-blobs-and-things-with-membranes and napari-simpleitk-image-processing. Both of these plugins add many features that can aid with image segmentation and other image processing tasks. Here, we’ve selected only these two to keep installation fast and easy for this course. If you use Napari more in your own work though, you may want to consider using devbio-napari instead. devbio-napari bundles many plugins into one useful package (including the two plugins we are about to install!). There’s detailed information on their documentation pages if you’re interested.

In the top menu-bar of Napari select:
Plugins > Install/Uninstall Plugins...

Then search for napari-segment-blobs-and-things-with-membranes and click the blue button labelled ‘install’. Wait for the installation to complete.

Screenshot of plugin  installation window for napari-segment-blobs-and-things-with-membranes

Then search for napari-simpleitk-image-processing and click the blue install button. Wait for the installation to complete.

Screenshot of plugin  installation window for napari-simpleitk-image-processing

Once both plugins are installed, you will need to close and re-open Napari.

Filters


Let’s open the cells image in Napari again:
File > Open Sample > napari builtins > Cells (3D + 2Ch)

As before, make sure you only have ‘nuclei’ in the layer list. Select any additional layers, then click the A screenshot of Napari's delete layer button icon to remove them. Also, select the nuclei layer (should be highlighted in blue), and change its colormap from ‘green’ to ‘gray’ in the layer controls.

Nuclei image with gray colormap

With the new plugins installed, you should see many new options under Tools in the top menu-bar of Napari. You can find out more about these options using the plugin’s documentation which was linked in the previous section.

For now, we are interested in the options under:
Tools > Filtering / noise removal

Specifically, the two options labelled ‘gaussian’ - you should see one ending in ‘n-SimpleITK’ and another ending ‘scikit-image, nsbatwm’. These are two slightly different implementations of a gaussian blur, one from the napari-simpleitk-image-processing plugin and the other from the napari-segment-blobs-and-things-with-membranes plugin. Both should work perfectly well for our image, but let’s use the one ending with ‘scikit-image, nsbatwm’ for now.

If you click on this option, you should see a new panel appear on the right side of Napari:

Screenshot of settings for gaussian blur in  Napari

Make sure you have ‘nuclei(data)’ selected on the ‘image’ row, then click run:

Nuclei image after gaussian blur with sigma  of 1

You should see a new image appear in the layer list called ‘Result of gaussian_blur’, which is a slightly blurred version of the original nuclei image.

Try increasing the ‘sigma’ value to three and clicking run again:

Nuclei image after gaussian blur with sigma  of 3

You should see that the ‘Result of gaussian_blur’ layer is updated to show a much more heavily blurred version of the original nuclei image.

What’s happening here? What exactly does a gaussian blur do? A gaussian blur is an example of a ‘linear filter’ which is used to manipulate pixel values in images. When a filter is applied to an image, each pixel value is replaced by some combination of the pixel values around it. For example, below is shown a small, zoomed-in area of the nucleus image. Here, the value of the red pixel could be affected by all values within the displayed 3x3 box:

Small zoomed-in area of the nucleus image  with a pixel highlighted in red. Around this pixel is shown a  3x3 box.

Exactly what this effect is, and the size of the region it involves, is controlled by the filter’s ‘kernel’. The kernel can be thought of as another very small image, where the pixel values control the effect of the filter. An example 3x3 kernel is shown below:

Left - small area of the nucleus image with a  pixel highlighted in red. Around this pixel is shown a 3x3 box. Right - example  of a 3x3 kernel

While the above image uses a 3x3 kernel, they can have many different sizes! Kernels tend to be odd in size: 3x3, 5x5, 9x9, etc. This is to allow the current pixel that you will be replacing to lie perfectly at the centre of the kernel, with equal spacing on all sides.

To determine the new value of a pixel (like the red pixel above), the kernel is placed over the target image centred on the pixel of interest. Then, for each position in the kernel, we multiply the image pixel value with the kernel pixel value. For the 3x3 kernel example above, we multiply the image pixel value one above and one to the left of our current pixel with the pixel value in the top left position of the kernel. Then we multiply the value for the pixel just above our current pixel with the top middle kernel value and so on… The result of the nine multiplications in each of the nine positions of this kernel are then summed together to give the new value of the central pixel. To process an entire image, the kernel is moved across the image pixel by pixel calculating the new value at each location. Pete Bankhead’s bioimage book has a really nice animation of this process , which is worth taking a look at.

For the gaussian filter we looked at above, the values in the kernel are based on a ‘gaussian function’. A gaussian function creates a central peak that reduces in height as we move further away from the centre. The shape of the peak can be adjusted using different values of ‘sigma’ (the standard deviation of the function), with larger sigma values resulting in a wider peak:

Plot of a 1D gaussian function  comparing three different sigma values

For a gaussian filter, the values are based on a 2D gaussian function. This gives similar results to the plot above (showing a 1D gaussian function) with a clear central peak, but now the height decreases in both x and y:

Plot of a 2D gaussian function  comparing three different sigma values

Gaussian kernels show this same pattern, with values highest at the centre that decrease as we move further away. See the example 5x5 kernel below:

An example of a 5x5 gaussian  kernel

The gaussian filter causes blurring (also known as smoothing), as it is equivalent to taking a weighted average of all pixel values within its boundaries. In a weighted average, some values contribute more to the final result than others. This is determined by their ‘weight’, with a higher weight resulting in a larger contribution to the result. As a gaussian kernel has its highest weights at the centre, this means that a gaussian filter produces an average where central pixels contribute more than those further away.

Larger sigma values result in larger kernels, which average larger areas of the image. For example, the scikit-image, nsbatwm implementation we are currently using truncates the kernel after four standard deviations (sigma). This means that the blurring effect of the gaussian filter is enhanced with larger sigma, but will also take longer to calculate. This is a general feature of kernels for different types of filter - larger kernels tend to result in a stronger effect at the cost of increased compute time. This time can become significant when processing very large images in large quantities.

If you want more information about how filters work, both the data carpentry image processing lesson and Pete Bankhead’s bioimage book have chapters going into great detail. Note that here we have focused on ‘linear’ filters, but there are many types of ‘non-linear’ filter that process pixel values in different ways.

Sigma vs full width at half maximum (FWHM)

In this episode, we have focused on the gaussian function’s standard deviation (sigma) as the main way to control the width of the central peak. Some image analysis packages will instead use a measure called the ‘full width at half maximum’ or FWHM. The FWHM is the width of the curve at half of its maximum value (see the diagram below):

Diagram of gaussian function with FWHM labelled

Similar to increasing sigma, a higher FWHM will result in a wider peak. Note that there is a clear relationship between sigma and FWHM where:

\[\large FWHM = sigma\sqrt{8ln(2)}\]

Filters

Try some of the other filters included with the napari-segment-blobs-and-things-with-membranes and napari-simpleitk-image-processing plugins.

For example:

  • What does Tools > Filtering / noise removal > Median (scipy, nsbatwm) do? How does it compare to the gaussian filter we used earlier?

  • What does Tools > Filtering / edge enhancement > Sobel (n-SimpleITK) do?

  • What does Tools > Filtering / background removal > Maximum (scipy, nsbatwm) do?

  • What does Tools > Filtering / background removal > Minimum (scipy, nsbatwm) do?

If you’re not sure what the effect is, try searching for the filter’s name online.

Median

The median filter creates a blurred version of the input image. Larger values for the ‘radius’ result in a greater blurring effect.

The results of the median filter are similar to a gaussian blur, but tend to preserve the edges of objects better. For example, here you can see that it preserves the sharp edges of each nucleus. You can read more about how the median filter works in Pete Bankhead’s bioimage book.

Sobel

Sobel is a type of filter used to detect the edges of objects in an image. For example, for the nuclei image it gives bright rings around each nucleus, as well as around some of the brighter patches inside the nuclei.

Maximum

A maximum filter replaces each pixel value with the maximum value in a certain area around it. For example, for the nuclei, you should see the bright areas expand in size. Increasing the ‘radius’ of the filter enhances the effect.

Minimum filter

A minimum filter replaces each pixel value with the minimum value in a certain area around it. For example, for the nuclei, you should see the bright areas shrink in size. Increasing the ‘radius’ of the filter enhances the effect.

Thresholding the blurred image


First, let’s clean up our layer list. Make sure you only have the ‘nuclei’ and ‘Result of gaussian_blur’ layers in the layer list - select any others and remove them by clicking the A screenshot of Napari's delete layer button icon. Also, close all filter settings panels on the right side of Napari (apart from the gaussian settings) by clicking the tiny A screenshot of Napari's hide button icon at their top left corner.

Now let’s try thresholding our image again. Make sure you set your gaussian blur sigma to three, then click ‘Run’.

Then, we’ll apply the same threshold as before, now to the ‘Result of gaussian_blur’ layer:

PYTHON


# Get the image data for the blurred nuclei
blurred = viewer.layers["Result of gaussian_blur"].data

# Create mask with a threshold of 8266
blurred_mask = blurred > 8266

# Add mask to the Napari viewer
viewer.add_labels(blurred_mask)

You’ll see that we get an odd result - a totally empty image! What went wrong here? Let’s look at the blurred image’s shape and data type in the console:

PYTHON

print(blurred.shape)
print(blurred.dtype)

OUTPUT

(60, 256, 256)
float64

The shape is as expected, but what happened to the data type! It’s now a 64-bit float image (rather than the usual unsigned integer 8-bit/16-bit for images). Recall from the ‘What is an image?’ episode that float images allow values with a decimal point to be stored e.g. 3.14.

Many image processing operations will convert images to float32 or float64, to provide the highest precision possible. For example, imagine you have an unsigned-integer 8-bit image with pixel values of all 75. If you divided by two to give 37.5, then these values would all be rounded to 38 when stored (as uint8 can’t store decimal numbers). Only by converting to a different data type (float) could we store the exact value of this operation. In addition, by having the highest bit-depth (64-bit), we ensure the highest possible precision which can be useful to avoid slight errors after multiple operations are applied one after the other. In summary, changes in data type are expected in image processing, and it’s good to keep an eye out for when this is required!

Let’s return to thresholding our image. Close the gaussian panel by clicking the tiny A screenshot of Napari's hide button icon at its top left corner. Then select the ‘blurred_mask’ in the layer list and remove it by clicking the A screenshot of Napari's delete layer button icon. Finally, open the napari-matplotlib histogram again with:
Plugins > napari Matplotlib > Histogram

A histogram of the 29th z slice of  the nuclei image after a gaussian blur. The left contrast limit is set  to 0.134.

Make sure you have ‘Result of gaussian_blur’ selected in the layer list (should be highlighted in blue).

You should see that this histogram now runs from 0 to 1, reflecting the new values after the gaussian blur and its new data type. Let’s again choose a threshold between the two peaks - around 0.134:

PYTHON


# Get the image data for the blurred nuclei
blurred = viewer.layers["Result of gaussian_blur"].data

# Create mask with a threshold of 0.134
blurred_mask = blurred > 0.134

# Add mask to the Napari viewer
viewer.add_labels(blurred_mask)
Mask of nuclei (brown) overlaid on  nuclei image - created with manual thresholding after gaussian blur

Now we see a much more sensible result - a brown mask that again highlights the nuclei in brown. To compare to the result with no smoothing, let’s run our previous threshold again (from the earlier thresholding section):

PYTHON


# Get the image data for the nuclei
nuclei = viewer.layers["nuclei"].data

# Create mask with a threshold of 8266
mask = nuclei > 8266

# Add mask to the Napari viewer
viewer.add_labels(mask)

If we compare ‘blurred_mask’ and ‘mask’, we can see that blurring before choosing a threshold results in a much smoother result that has fewer areas inside nuclei that aren’t labelled, as well as fewer areas of the background that are incorrectly labelled.

This workflow of blurring an image then thresholding it is a very common method to provide a smoother, more complete mask. Note that it still isn’t perfect! If you browse through the z slices with the slider at the bottom of the image, it’s clear that some areas are still missed or incorrectly labelled.

Automated thresholding


First, let’s clean up our layer list again. Make sure you only have the ‘nuclei’, ‘mask’, ‘blurred_mask’ and ‘Result of gaussian_blur’ layers in the layer list - select any others and remove them by clicking the A screenshot of Napari's delete layer button icon. Then, if you still have the napari-matplotlib histogram open, close it by clicking the tiny x icon in the top left corner.

So far we have chosen our threshold manually by looking at the image histogram, but it would be better to find an automated method to do this for this. Many such methods exist - for example, see the various options starting with ‘Threshold’ under Tools > Segmentation / binarization. One of the most common methods is Otsu thresholding, which we will look at now.

Let’s go ahead and apply this to our blurred image:
Tools > Segmentation / binarization > Threshold (Otsu et al 1979, scikit-image, nsbatwm)

This will open a panel on the right side of Napari. Select ‘Result of gaussian_blur(data)’ in the image row, then click Run:

Mask of nuclei (brown) overlaid on  nuclei image - created with Otsu thresholding after gaussian blur

This should produce a mask (in a new layer called ‘Result of threshold_otsu’) that is very similar to the one we created with a manual threshold. To make it easier to compare, we can rename some of our layers by double clicking on their name in the layer list - for example, rename ‘mask’ to ‘manual_mask’, ‘blurred_mask’ to ‘manual_blurred_mask’, and ‘Result of threshold_otsu’ to ‘otsu_blurred_mask’. Recall that you can change the colour of a mask by clicking the A screenshot of Napari's shuffle button icon in the top row of the layer controls. By toggling on/off the relevant A screenshot of Napari's eye button icons, you should see that Otsu chooses a slightly different threshold than we did in our ‘manual_blurred_mask’, labelling slightly smaller regions as nuclei in the final result.

How is Otsu finding the correct threshold? The details are rather complex, but to summarise - Otsu’s method is trying to find a threshold that minimises the spread of pixel values in both the background and your class of interest. In effect, it’s trying to find two peaks in the image histogram and place a threshold in between them.

This means it’s only suitable for images that show two clear peaks in their histogram (also known as a ‘bimodal’ histogram). Other images may require different automated thresholding methods to produce a good result.

Automated thresholding

For this exercise, we’ll use the same example image as the manual thresholding exercise. If you don’t have that image open, run the top code block in that exercise to open the image:

Test image containing a  rectangle, circle and triangle

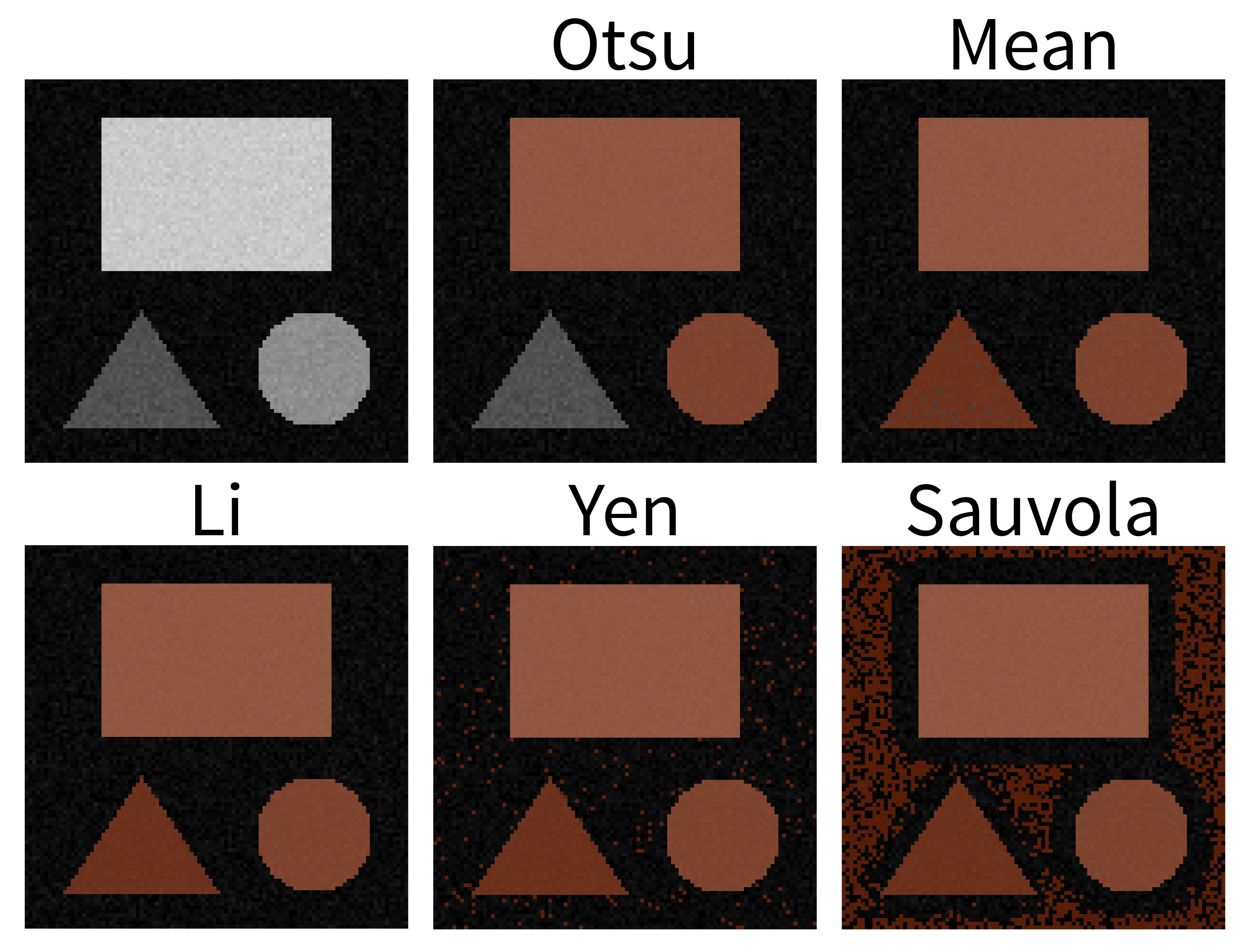

Try some of the other automatic thresholding options provided by the napari-segment-blobs-and-things-with-membranes and napari-simpleitk-image-processing plugins.

For example:

  • Tools > Segmentation / binarization > Threshold (Triangle method, Zack et al 1977, scikit-image, nsbatwm)
  • Tools > Segmentation / binarization > Threshold (Yen et al 1995, scikit-image, nsbatwm)
  • Tools > Segmentation / binarization > Threshold (Li et al 1993, scikit-image, nsbatwm)
  • Tools > Segmentation / binarization > Threshold Otsu, multiple thresholds (n-SimpleITK)

How do they compare to standard Otsu thresholding?
Tools > Segmentation / binarization > Threshold (Otsu et al 1979, scikit-image, nsbatwm)

Recall that you can change the colour of a mask by clicking the A screenshot of Napari's shuffle button icon in the top row of the layer controls.

Standard Otsu thresholding chooses a threshold that separates the background from the three shapes:

Mask of shapes (brown) overlaid on shapes image -  made with Otsu thresholding

Li thresholding gives a very similar result.

Triangle also gives a similar result, but includes some isolated pixels from the noisy background:

Mask of shapes (brown) overlaid on shapes  image - made with triangle thresholding

Yen gives a different result - isolating the triangle and circle from the rest of the image. Some of the pixels in the rectangle are also labelled, but only in patchy areas:

Mask of shapes (brown) overlaid on shapes image -  made with Yen thresholding

Finally, the ‘Threshold Otsu, multiple thresholds’ option gives a completely different result. Using ‘number of thresholds’ of 3, a ‘label offset’ of 0 and ‘number of histogram bins’ of 256, we create a segmentation where each shape gets its own label:

Mask of shapes (brown) overlaid on shapes  image - made with multiple thresholds Otsu method

The ‘Threshold Otsu, multiple thresholds’ option is an extension of the standard Otsu thresholding method. This allows it to choose multiple thresholds at once (rather than only one as standard). This is useful if you have multiple different classes to segment in your images, that each have a clear peak in the image histogram.

The important point is that different automatic thresholding methods will work well for different kinds of images, and depending on which part of an image you are trying to segment. It’s worth trying a variety of options on your images to see which performs best for your specific dataset.

The Napari assistant


In this episode, we have directly applied methods from the Tools menu to our images. It’s worth mentioning though that these methods are also available via the ‘Napari assistant’.

First, let’s clean up our layer list again. Make sure you only have the ‘nuclei’ layer in the layer list - select any others and remove them by clicking the A screenshot of Napari's delete layer button icon. Also, close all settings panels on the right side of Napari by clicking the tiny A screenshot of Napari's hide button icon at their top left corner.

We can open the assistant with:
Tools > Utilities > Assistant (na)

Screenshot of the Napari assistant user  interface

The assistant splits image processing operations into broad categories such as ‘Remove noise’ and ‘Filter’. Let’s recreate our workflow of a gaussian blur followed by otsu thresholding in the assistant.

First, click the ‘Remove noise’ button in the assistant panel. In the settings that appear below, select the ‘Operation’ as ‘Gaussian (scikit-image, nsbatwm)’ and set the ‘sigma’ to three.

Screenshot of settings for removing noise  in Napari

This will create a new layer called ‘Result of Gaussian (scikit-image, nsbatwm)’. If you can’t see it in the viewer, try adjusting the contrast limits so the right node is at 1 (remember this is a float image that runs from 0-1, as we discussed in an earlier section).

With the ‘Result of Gaussian (scikit-image, nsbatwm)’ layer selected, click the ‘Binarize’ button in the assistant panel. Change the ‘Operation’ to ‘Threshold (Otsu et al 1979, scikit-image, nsbatwm)’.

Screenshot of settings for binarize in  Napari

You should see a nuclei mask similar to the one we created before.

Note that you can change the settings of a particular operation and all the steps after it will also update. For example, select the ‘Result of Gaussian (scikit-image, nsbatwm)’ layer again, then change the sigma to 1. You should see the mask automatically updates, becoming more patchy and noisy.

The napari assistant also has useful options to export and save workflows for re-use. This is important to make our image processing reproducible - it creates a clear record of every step that produced the final result. This makes it easy for other researchers to replicate our work and try the same methods on their own data. The napari-assistant can export workflows as python scripts or jupyter notebooks, which you can read more about in their online documentation.

Summary


To summarise, here are some of the main steps you can use to make a mask:

  1. Quality control
  2. Blur the image
  3. Threshold the image

There are many variations on this standard workflow e.g. different filters could be used to blur the image (or in general to remove noise), different methods could be used to automatically find a good threshold… There’s also a wide variety of post processing steps you could use to make your mask as clean as possible. We’ll look at some of these options in the next episode.

Key Points

  • Thresholding is simply choosing a specific pixel value to use as the cut-off between background and your class of interest.

  • Thresholds can be chosen manually based on the image histogram

  • Thresholds can be chosen automatically with various methods e.g. Otsu

  • Filters modify pixel values in an image by using a specific ‘kernel’

  • Gaussian filters are useful to blur an image before thresholding. The ‘sigma’ controls the strength of the blurring effect.

  • Image processing operations may modify the data type of your image - often converting it to float32 or float64.
