All in One View

Content from Imaging Software for microscopy

---

Last updated on 2026-09-22 | Edit this page

Overview

Questions

• What are the different software options for viewing microscopy images?

Objectives

• Explain the pros and cons of different image visualisation tools (e.g. ImageJ, Napari and proprietary options)

Choosing the right tool for the job

---

Light microscopes can produce a very wide range of image data, for example:

• 2D or 3D
• Time series or snapshots
• Different channels
• Small to large datasets

With such a wide range of data, there comes a huge variety of software that can work with these images. Different software may be specialised to specific types of image data, or to specific research fields. There is no one ‘right’ software to use - it’s about choosing the right tool for yourself, your data, and your research question!

Some points to consider when choosing software are:

• What is common in your research field?
  Having a good community around the software you work with can be extremely helpful - so it’s worth considering what is popular in your department, or in relevant papers in your field.

• Open source or proprietary?
  It’s important to consider if the software you are using is open-source or proprietary (requiring a one-off payment or a regular subscription fee to use). Open source means it is more freely available and likely more accessible to a larger group of researchers, but it may not be as robust or stable as software commercially developed by large team, particularly if you are interested in a very specific feature that it provides. Open source software often will rely on more open file formats and workflows, and they are designed to be extended by the community.

• Support for image types?
  For example, does it support 3D images, or timeseries?

• Can it be automated/customised/extended?
  Can you automate certain steps with your own scripts or plugins? Scripts are lists of commands to be carried out by a piece of software e.g.  load an image, then threshold it, then measure its size…These are often used to automate processes, especially for high throughput studies. Plugins add optional new features to a piece of software (rather than automating use of existing features). They’re designed to be reusable so other members of the community can easily benefit from these new features. Both of these components are useful to make sure your analysis steps can be easily shared and reproduced by other researchers.

As always, the right software to use will depend on your preference, your data and your research question. This being said, we will only use open-source software in this course, and we encourage using open-source software where possible.

Fiji/ImageJ and Napari

---

While there are many pieces of software to choose from, two of the most popular open-source options are Fiji/ImageJ and Napari. They are both:

• Freely available
• ‘General’ imaging software i.e. applicable to many different research fields
• Supporting a wide range of image types
• Customisable with scripts + plugins

Both are great options for working with a wide variety of images - so why choose one over the other? Some of the main differences are listed below if you are interested:

Differences between Fiji/ImageJ and Napari

Python vs Java
A big advantage of Napari is that it is made with the Python programming language (vs Fiji/ImageJ which is made with Java). In general, this makes it easier to extend with scripts and plugins as Python tends to be more widely used in the research community. It also means Napari can easily integrate with other python tools e.g. Python’s popular machine learning libraries.

Maturity
Fiji/ImageJ has been actively developed for many years now (>20 years), while Napari is a more recent development starting around 2018. This difference in age comes with pros and cons - in general, it means that the core features and layout of Fiji/ImageJ are very well established, and less likely to change than Napari. With Napari, you will likely have to adjust your image processing workflow with new versions, or update any scripts/plugins more often. Equally, as Napari is new and rapidly growing in popularity, it is quickly gaining new features and attracting a wide range of new plugin developers.

Built-in tools
Fiji/ImageJ comes with many image processing tools built-in by default - e.g.  making image histograms, thresholding and gaussian blur. While Napari is more minimal by default and mostly focusing on image display, the core functionality is continuing to evolve. Some of these features which have in the past required installation of additional plugins are now being built in.

Specific plugins
There are excellent plugins available for Fiji/ImageJ and Napari that focus on specific types of image data or processing steps. The availability of a specific plugin will often be a deciding factor on whether to use Fiji/ImageJ or Napari for your project.

Ease of installation and user interface
As Fiji/ImageJ has been in development for longer, it tends to be simpler to install than Napari (especially for those with no prior Python experience). In addition, as it has more built-in image processing tools, it tends to be simpler to use fully from its user interface. Napari meanwhile is often strongest when you combine it with some Python scripting (although this isn’t required for many workflows!)

For this lesson, we will use Napari as our software of choice. It’s worth bearing in mind though that Fiji/ImageJ can be a useful alternative - and many workflows will actually use both Fiji/ImageJ and Napari together! Again, it’s about choosing the right tool for your data and research question.

Key Points

• There are many software options for light microscopy images
• Considerations when choosing a software for your analysis include functionality, cost, availability, and customisation.
• Napari and Fiji/ImageJ are popular open-source options

Content from Getting Started With Napari

---

Last updated on 2026-09-22 | Edit this page

Overview

Questions

• How can Napari be used to view images?
• How can I interact Napari through the console or via Jupyter Lab?

Objectives

• Use Napari to open images
• Navigate the Napari viewer (pan/zoom/swapping between 2D and 3D views…)
• Change colormap (LUT) in Napari
• Explain the main parts of the Napari user interface
• Install plugins from Napari Hub

In this section, we will open up with Napari in a number of different ways, and understand how it represents images, as well as measurements derived for it.

Opening Napari

---

Let’s get started by opening a new Napari window - you should have already followed the installation instructions. Note this can take a while the first time, so give it a few minutes!

BASH

# Change micro-sam to wherever you put your environment
cd napari-ai-workshop
source .venv/bin/activate
napari

Opening images

---

Napari comes with some example images - let’s open one now. Go to the top menu-bar of Napari and select:
File > Open Sample > napari builtins > Cells (3D+2Ch)

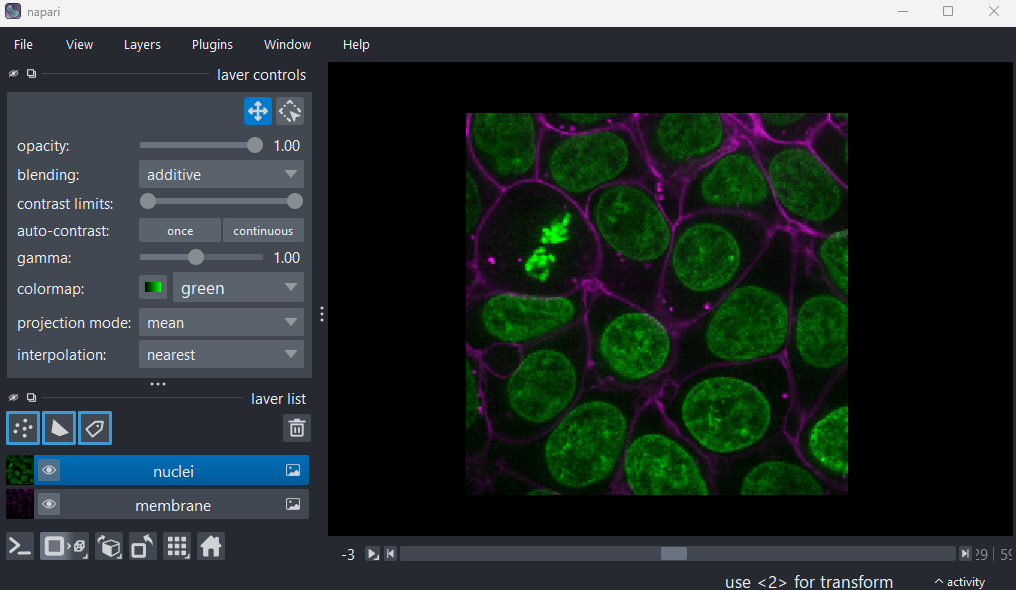

You should see a fluorescence microscopy image of some cells:

Napari’s User interface

---

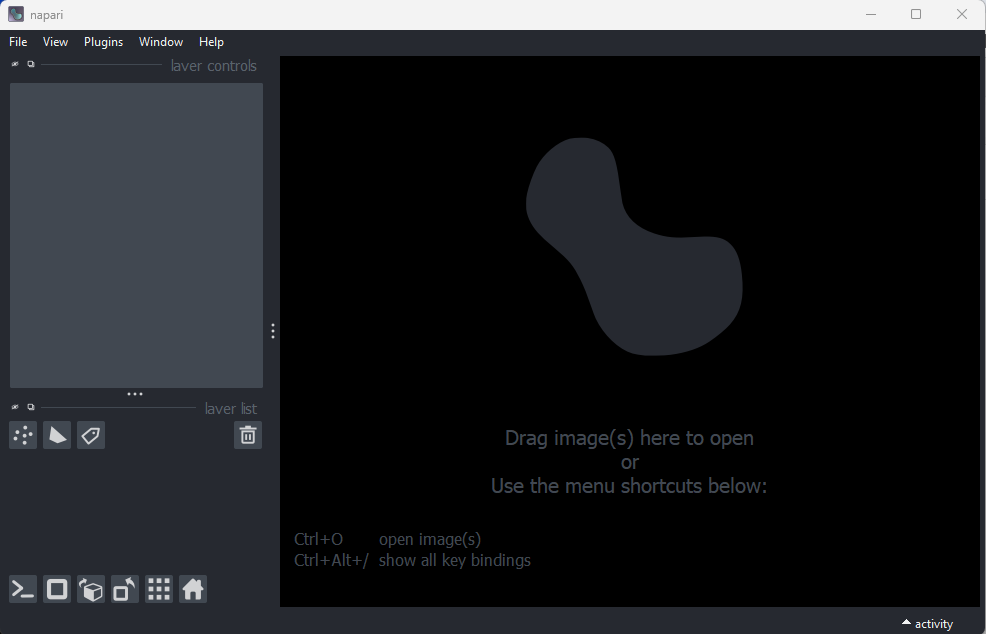

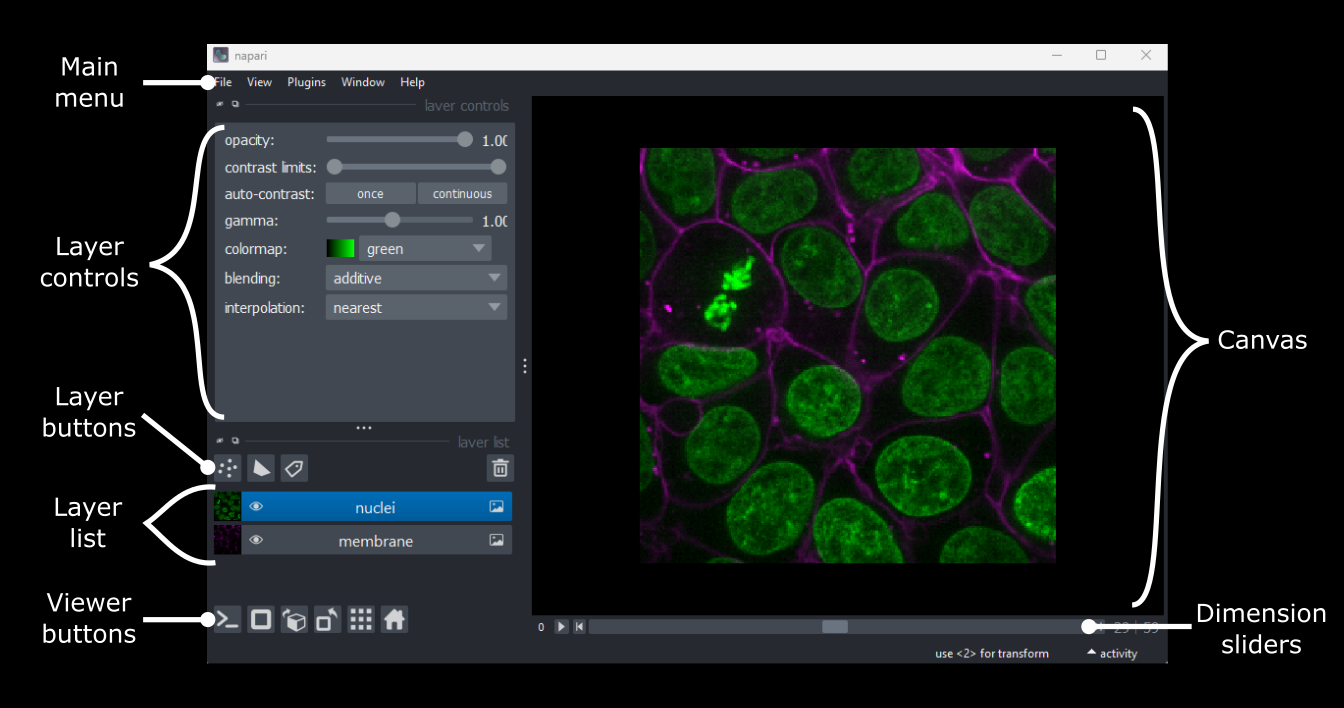

Napari’s user interface is split into a few main sections, as you can see in the diagram below (note that on Macs the main menu will appear in the upper ribbon, rather than inside the Napari window):

Let’s take a brief look at each of these sections - for full information see the Napari documentation.

Main menu

---

We already used the main menu in the last section to open a sample image. The main menu contains various commands for opening images, changing preferences and installing plugins (we’ll see more of these options in later episodes).

Canvas

---

The canvas is the main part of the Napari user interface. This is where we display and interact with our images.

Try moving around the cells image with the following commands:

Pan - Click and drag
Zoom - Scroll in/out (use the same gestures with your mouse
                      that you would use to scroll up/down
                      in a document)

Dimension sliders

---

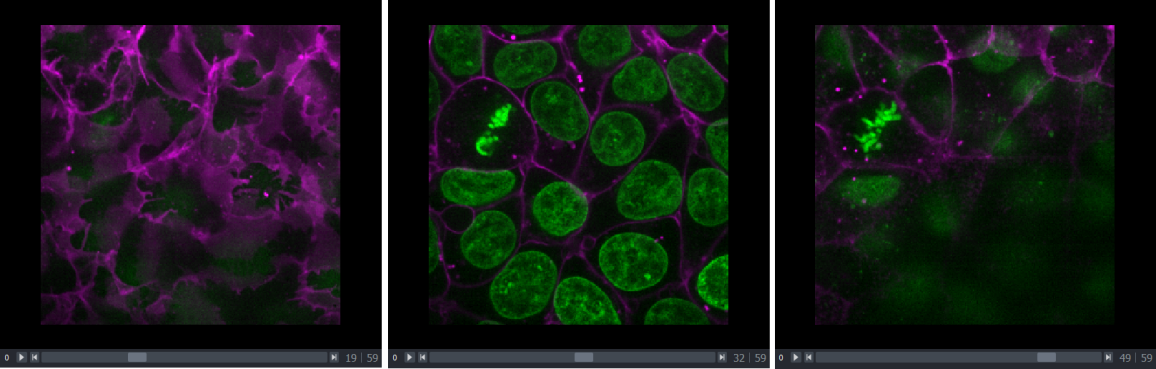

Dimension sliders appear at the bottom of the canvas depending on the type of image displayed. For example, here we have a 3D image of some cells, which consists of a stack of 2D images. If we drag the slider at the bottom of the image, we move up and down in this stack:

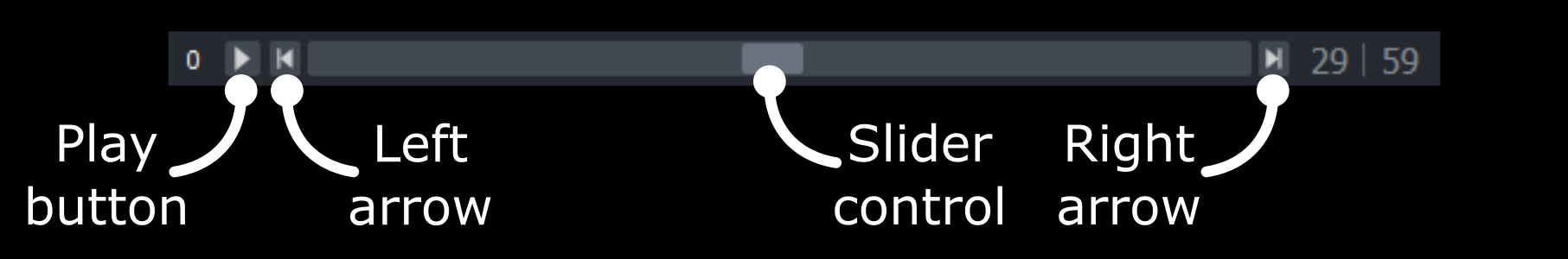

Pressing the arrow buttons at either end of the slider steps through one slice at a time. Also, pressing the ‘play’ button at the very left of the slider moves automatically through the stack until pressed again.

sand More sliders can appear if our image has more dimensions (e.g. time series, or further channels).

Viewer buttons

---

The viewer buttons (the row of buttons at the bottom left of Napari) control various aspects of the Napari viewer:

Console

This button opens Napari’s built-in python console, where we can enter in Python commands to interact with the imaging data.

2D/3D /

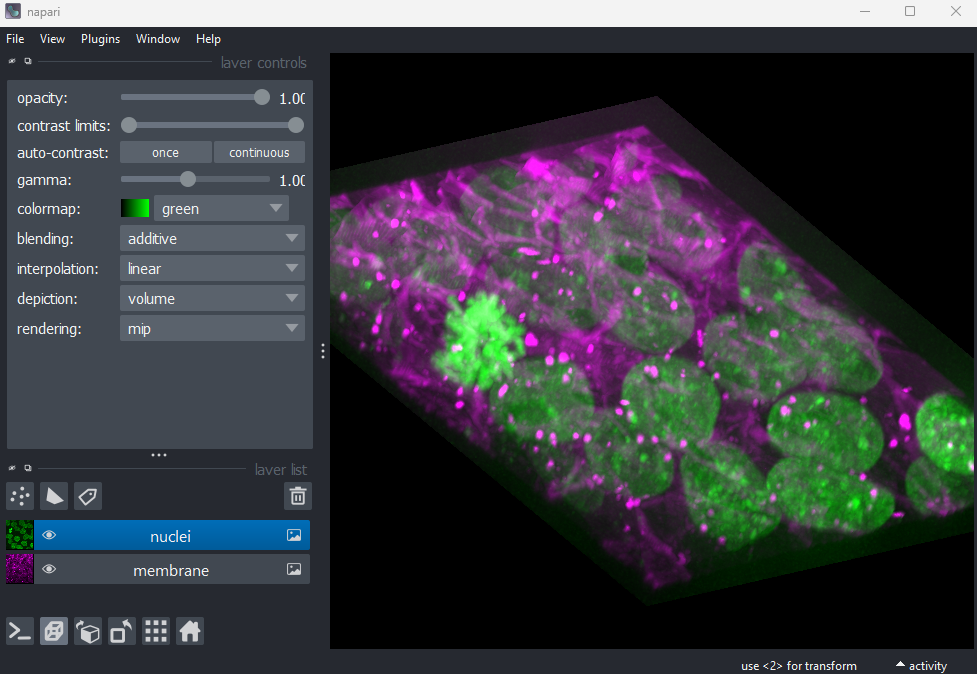

This switches the canvas between 2D and 3D display. Try switching to the 3D view for the cells image:

The controls for moving in 3D are similar to those for 2D:

Rotate - Click and drag
Pan - Shift + click and drag
Zoom - Scroll in/out

Roll dimensions

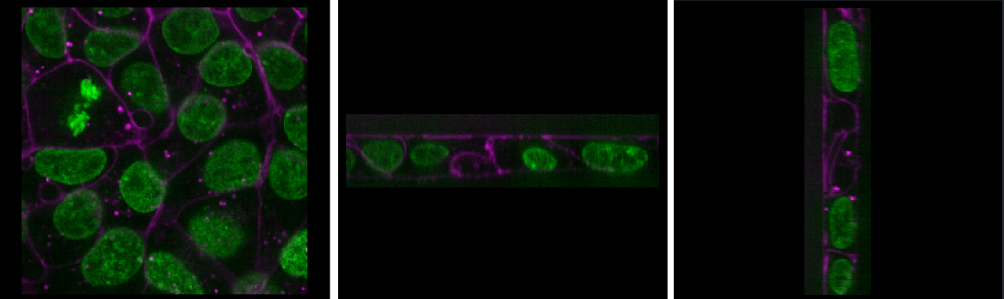

This changes which image dimensions are displayed in the viewer. For example, let’s switch back to the 2D view for our cells image and press the roll dimensions button multiple times. You’ll see that it switches between different orthogonal views (i.e. at 90 degrees to our starting view). Pressing it 3 times will bring us back to the original orientation.

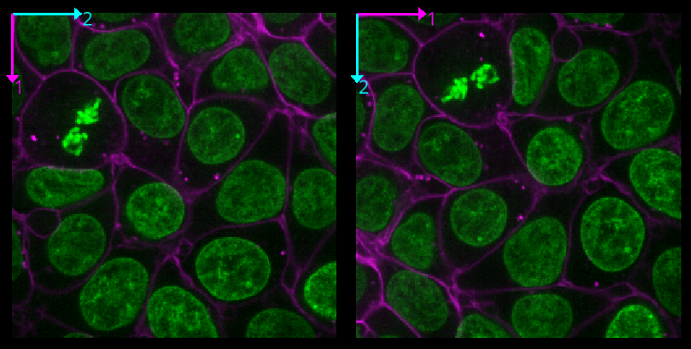

Transpose dimensions

This button swaps the two currently displayed dimensions. In our cells image, this means the x and y axis are switched. Pressing the button again brings us back to the original orientation.

Grid

This button displays all image layers in a grid (+ any additional layer types, as we’ll see later in the episode). Using this for our cells image, we see the nuclei (green) displayed next to the cell membranes (purple), rather than on top of each other.

Home

This button brings the canvas back to its default view. This is useful if you have panned/zoomed to a specific region and want to quickly get back to an overview of the full image.

Layer list

---

Now that we’ve seen the main controls for the viewer, let’s look at the layer list. ‘Layers’ are how Napari displays multiple items together in the viewer. For example, currently our layer list contains two items - ‘nuclei’ and ‘membrane’. These are both Image layers and are displayed in order, with the nuclei on top and membrane underneath.

We can show/hide each layer by clicking the eye icon on the left side of their row. We can also rename them by double clicking on the row.

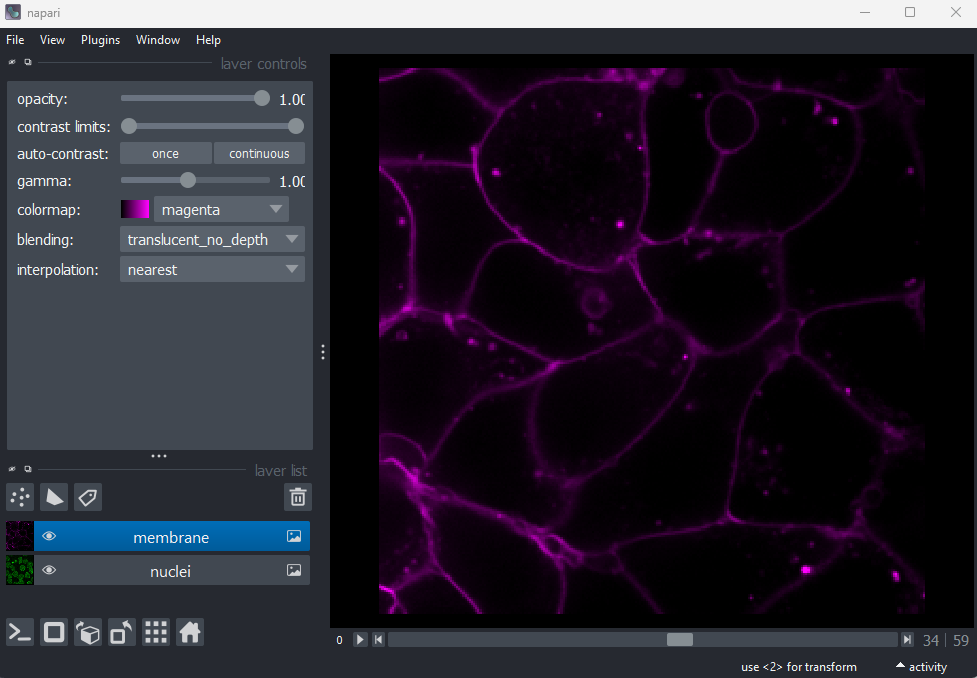

We can change the order of layers by dragging and dropping items in the layer list. For example, try dragging the membrane layer above the nuclei. You should see the nuclei disappear from the viewer (as they are now hidden by the membrane image on top).

Here we only have Image layers, but there are many more types like Points, Shapes and Labels, some of which we will see later in the episode.

Layer controls

---

Next let’s look at the layer controls - this area shows controls only for the currently selected layer (i.e. the one that is highlighted in blue in the layer list). For example, if we click on the nuclei layer then we can see a colormap of green, while if we click on the membrane layer we see a colormap of magenta.

Controls will also vary depending on layer type (like Image vs Points) as we will see later in this episode.

Let’s take a quick look at some of the main image layer controls:

Opacity

This changes the opacity of the layer - lower values are more transparent. For example, reducing the opacity of the membrane layer (if it is still on top of the nuclei), allows us to see the nuclei again.

Contrast limits

The contrast limits adjust what parts of the image we can see and how bright they appear in the viewer. Moving the left node adjusts what is shown as fully black, while moving the right node adjusts what is shown as fully bright.

Colormap

Along with the contrast limits, the colormap determines how pixels values are assigned colors on the display. Clicking in the dropdown shows a wide range of options that you can swap between.

Blending

This controls how multiple layers are blended together to give the final result in the viewer. There are many different options to choose from. For example, let’s put the nuclei layer back on top of the membrane and change its blending to ‘opaque’. You should see that it now completely hides the membrane layer underneath. Changing the blending back to ‘additive’ will allow both the nucleus and membrane layers to be seen together again.

Challenge

Using image layer controls

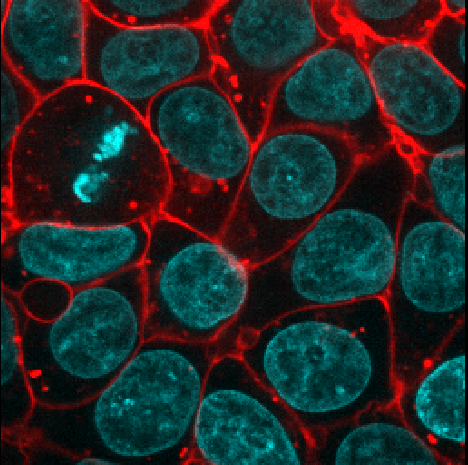

Adjust the layer controls for both nuclei and membrane to give the result below:

Show me the solution

• Click on the nuclei in the layer list
• Change the colormap to cyan
• Click on the membrane in the layer list
• Change the colormap to red
• Move the right contrast limits node to the left to make the membranes appear brighter

Layer buttons

---

So far we have only looked at Image layers, but there are many more types supported by Napari. The layer buttons allow us to add additional layers of these new types:

Points

This button creates a new points layer. This can be used to mark specific locations in an image.

Shapes

This button creates a new shapes layer. Shapes can be used to mark regions of interest e.g. with rectangles, ellipses or lines.

Labels

This button creates a new labels layer. This is usually used to label specific regions in an image e.g. to label individual nuclei.

Remove layer

This button removes the currently selected layer (highlighted in blue) from the layer list.

Callout

Other layer types

Note that there are some layer types that can’t be added via clicking buttons in the user interface, like surfaces, tracks and vectors. These require calling python commands in Napari’s console or an external python script.

Challenge

Point layers

Let’s take a quick look at one of these new layer types - the Points layer.

Add a new points layer by clicking the points button. Investigate the different layer controls - what do they do? Note that hovering over buttons will usually show a summary tooltip.

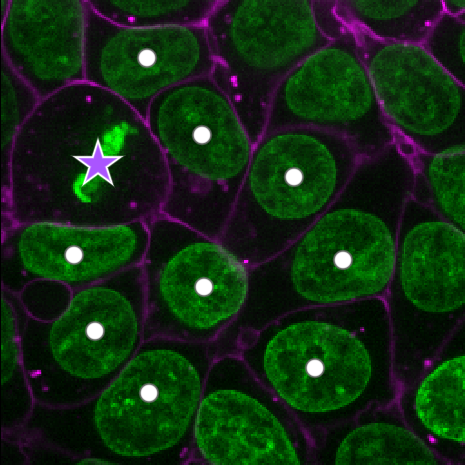

Add points and adjust settings to give the result below:

Show me the solution

• Click the ‘add points’ button
• Click on nuclei to add points on top of them
• Click the ‘select points’ button
• Click on the point over the dividing nucleus
• Increase the point size slider
• Change its symbol to star
• Change its face colour to purple
• change its edge colour to white

Napari plugins

---

How can we quickly assess the pixel values in an image? We could hover over individual pixels in the Napari window, or we could print the array into Napari’s console or in a Jupyter notebook, but these are hard to interpret at a glance. A much better option is to use an image histogram.

To do this, we will have to install a new plugin for Napari. Remember from the Imaging Software episode that plugins add new features to a piece of software. Napari has hundreds of plugins available on the napari hub website.

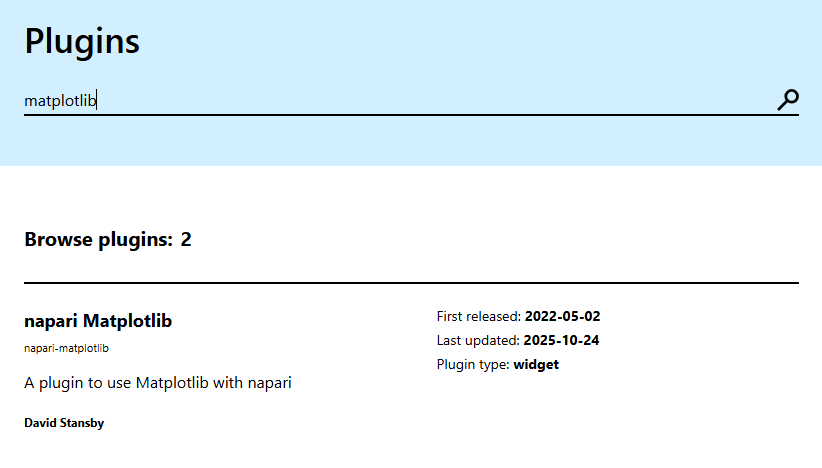

Let’s start by going to the napari hub and searching for ‘matplotlib’:

You should see ‘napari Matplotlib’ appear in the list (if not, try scrolling further down the page). If we click on napari matplotlib this opens a summary of the plugin with links to the documentation and github repository containing the plugin’s source code.

Now that we’ve found the plugin we want to use, let’s go ahead and install it in Napari. Note that some plugins have special requirements for installation, so it’s always worth checking their napari hub page for any extra instructions. In the top menu bar of Napari select:
Plugins > Install/Uninstall Plugins...

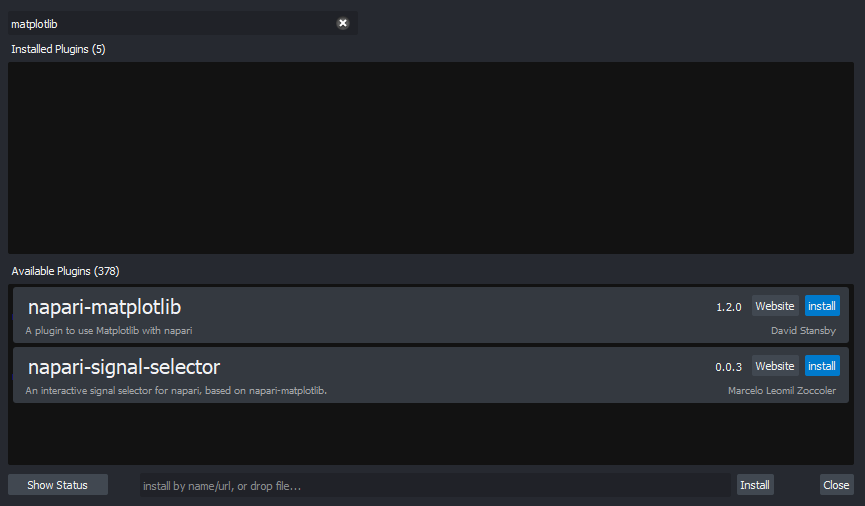

This should open a window summarising all installed plugins (at the top) and all available plugins to install (at the bottom). If we search for ‘matplotlib’ in the top searchbar, then ‘napari-matplotlib’ will appear under ‘Available Plugins’. Press the blue install button and wait for it to finish. You’ll then need to close and re-open Napari.

If all worked as planned, you should see a new option in the top menubar under:
Plugins > napari Matplotlib

Challenge

Finding plugins

Napari hub contains hundreds of plugins with varying quality, written by many different developers. It can be difficult to choose which plugins to use!

• Search for cell tracking plugins on Napari hub
• Look at some of the plugin summaries, documentation and github repositories
• What factors could help you decide if the plugin is well maintained?
• What factors could help you decide if the plugin is popular with Napari users?

Show me the solution

Is a plugin well maintained?

Some factors to look for:

Last updated
Check when the plugin was last updated - was it recently? This is shown in the search list summary and in the left sidebar when you open the plugin’s page on napari-hub.

Documentation
Is the plugin summary (+ any linked documentation) detailed enough to explain how to use the plugin?

Is a plugin popular?

Some factors to look for:

Stars on github
If you open a plugin’s linked github repository, you can see the number of ‘stars’ in the top right. More stars tend to indicate a plugin is more popular - although this isn’t always the case! Github is mainly used by plugin developers, so a plugin with few stars may still have many people using it.

Image.sc
It can also be useful to search the plugin’s name on the image.sc forum to browse relevant posts and see if other people had good experiences using it. Image.sc is also a great place to get help and advice from other plugin users, or the plugin’s developers.

Key Points

• Napari’s user interface is split into a few main sections including the canvas, layer list, layer controls…
• Layers can be of different types e.g. Image, Point, Label
• Different layer types have different layer controls
• Lots of additional functionality for Napari are available through plugins extendng its capability.

Content from What is an image?

---

Last updated on 2026-09-22 | Edit this page

Overview

Questions

• How are images represented in the computer?

Objectives

• Explain how a digital image is made of pixels

• Find the value of different pixels in an image in Napari

• Determine an image’s dimensions (numpy ndarray .shape)

• Determine an image’s data type (numpy ndarray .dtype)

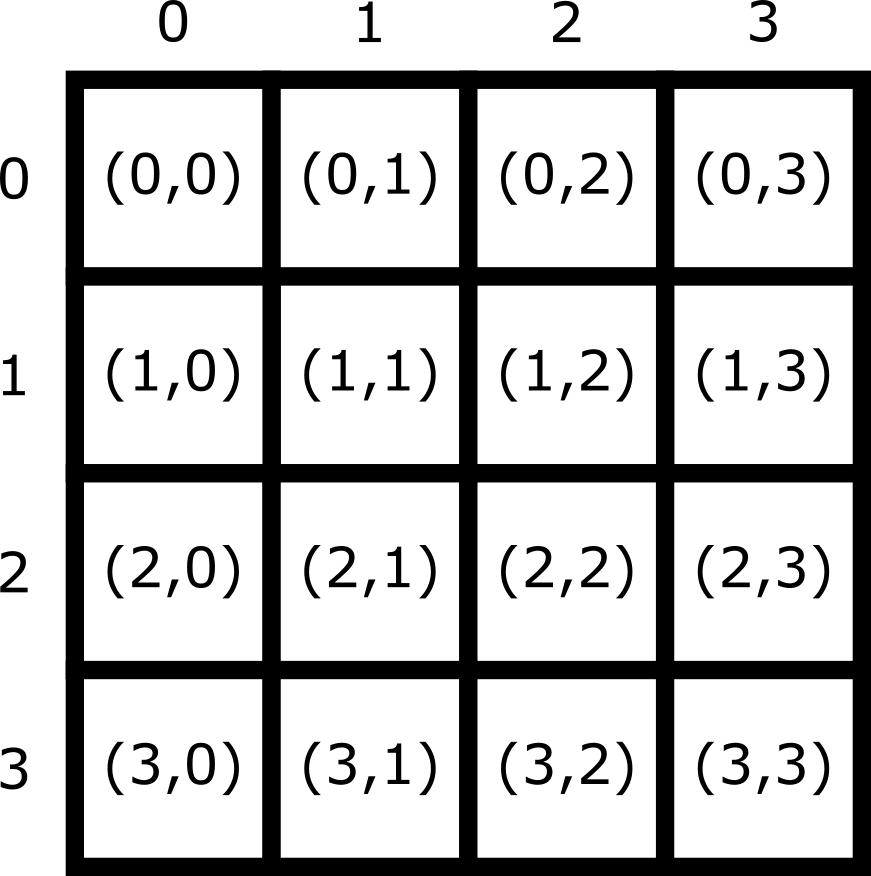

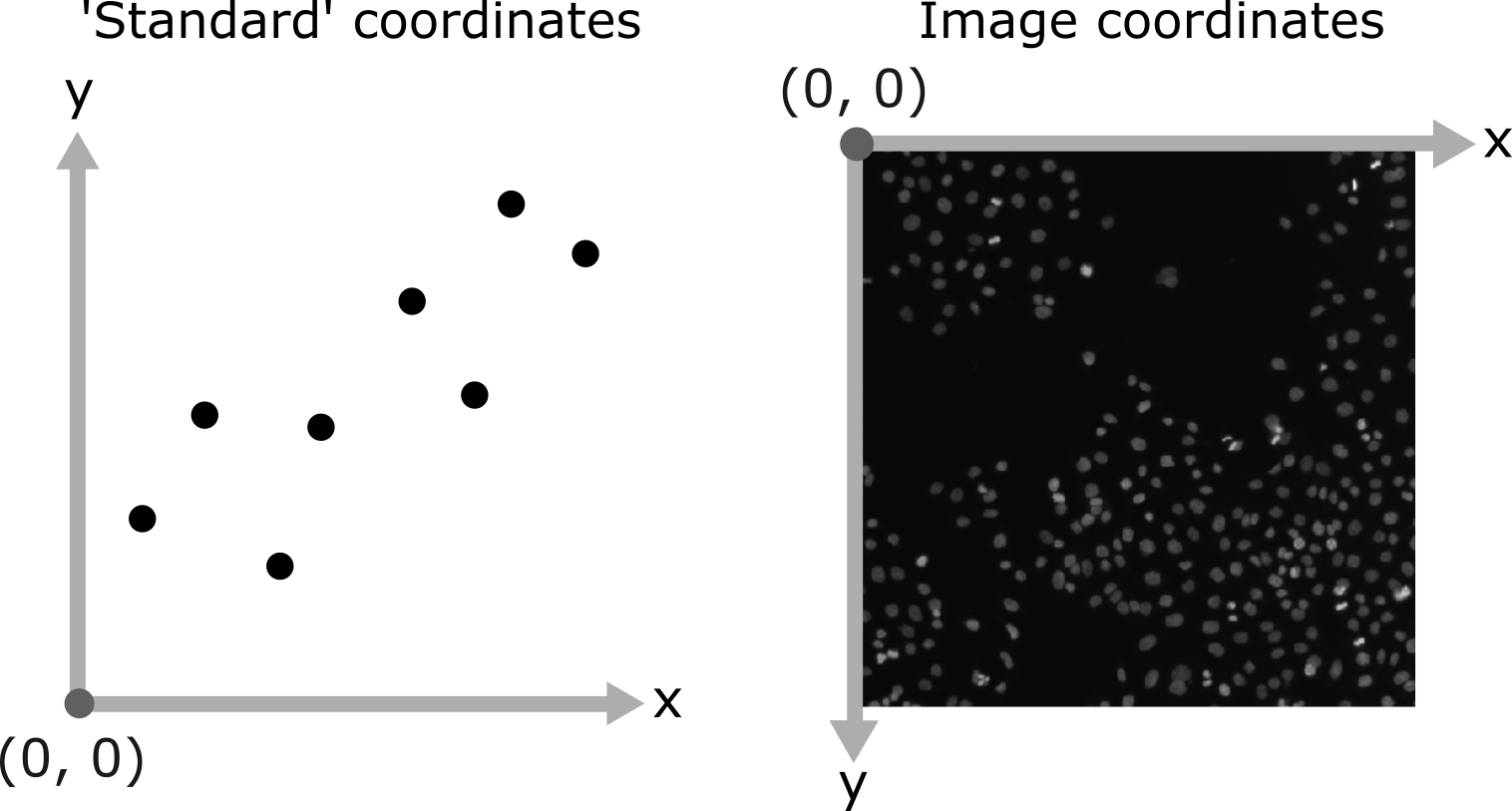

• Explain the coordinate system used for images

In the last episode, we looked at how to view images in Napari and how to interact with the Napari interface via Jupyter notebooks. Let’s take a step back now and try to understand how Napari (or ImageJ or any other viewer) understands how to display images properly. To do that we must first be able to answer the fundamental question - what is an image?

Pixels

---

Let’s start by removing all the layers we added to the Napari viewer last episode. Then we can open a new sample image:

• Click on the top layer in the layer list and shift + click the bottom layer. This should highlight all layers in blue.

• Press the remove layer button

You can also remove a layer through the notebook:

PYTHON

# Remove the membrane layer from the viewer
viewer.layers.remove("membrane")

# Or you can remove all layers using
viewer.layers.clear()

• We will now load a new layer in Napari

PYTHON

# Open the builtin napari sample called "Human Mitosis"
viewer.open_sample("napari","human_mitosis")

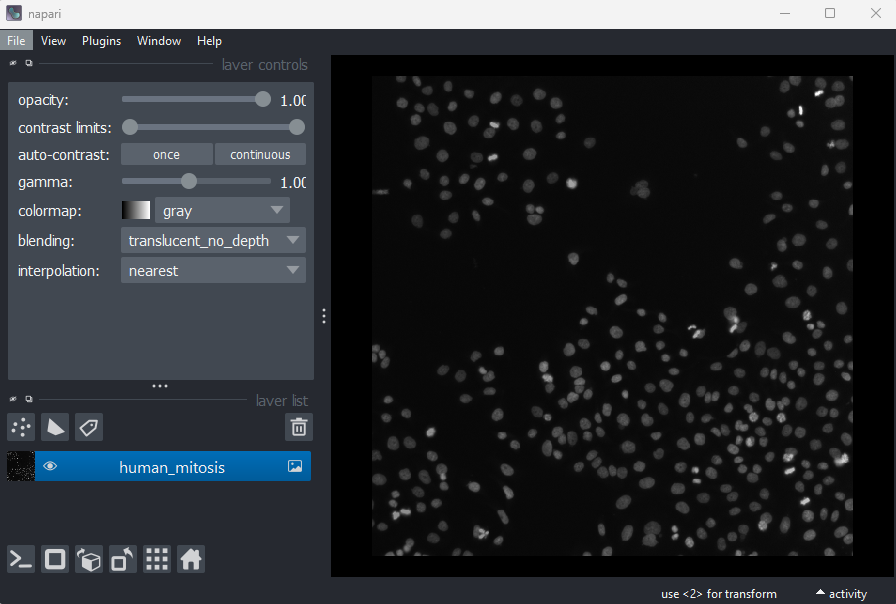

This will open a Napari window, which should look like the screenshot below:

This 2D image shows the nuclei of human cells undergoing mitosis. If we really zoom in up-close by scrolling, we can see that this image is actually made up of many small squares with different brightness values. These squares are the image’s pixels (or ‘picture elements’) and are the individual units that make up all digital images.

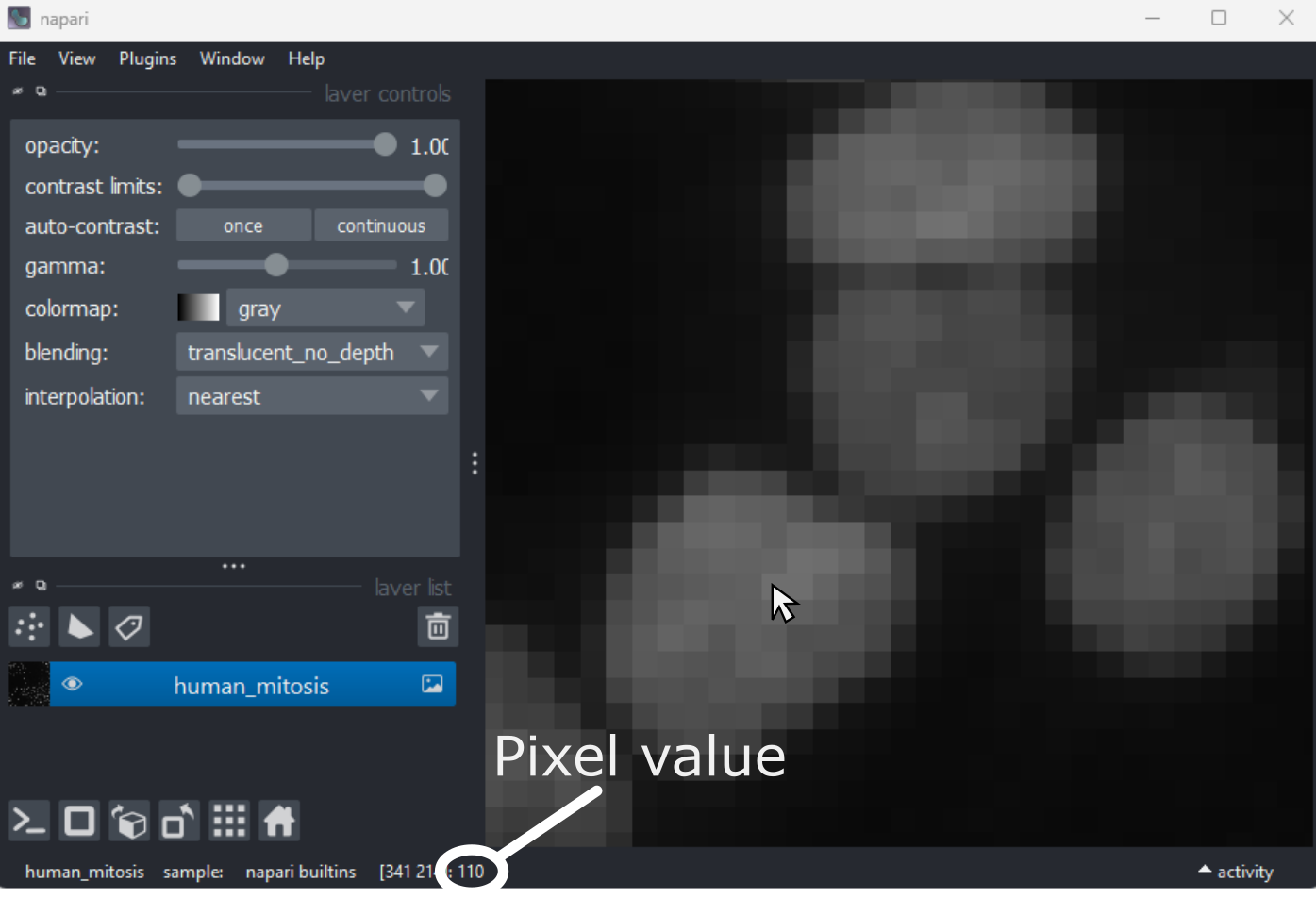

If we hover over these pixels with the mouse cursor, we can see that each pixel has a specific value. Try hovering over pixels in dark and bright areas of the image and see how the value changes in the bottom left of the viewer:

You should see that brighter areas have higher values than darker areas. The actual color is dictated by the contrast limits which map this value into an entry in a colormap, which provides the associated color to display.

Images are arrays of numbers

---

We’ve seen that images are made of individual units called pixels that have specific values - but how is an image really represented in the computer? Let’s dig deeper into Napari’s Image layers…

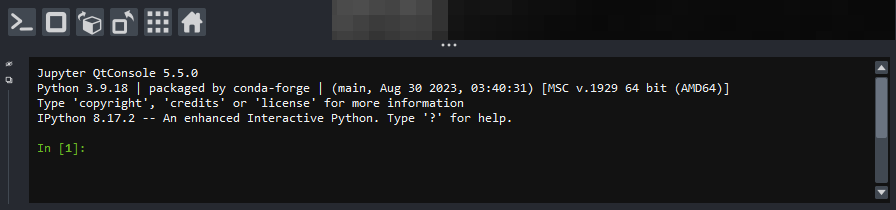

First, open Napari’s built-in Python console by pressing the console button . Note this can take a few seconds to open, so give it some time:

Callout

Console readability

You can increase the font size in the console by clicking inside it, then pressing Ctrl and + together. The font size can also be decreased with Ctrl and - together.

Note that you can also pop the console out into its own window by clicking the small icon on the left side.

Let’s look at the human mitosis image more closely - copy the text in the ‘Python’ cell below into Napari’s console and then press the Enter key. You should see it returns text that matches the ‘Output’ cell below in response.

All of the information about the Napari viewer can be accessed through the console with a variable called viewer. A viewer has 1 to many layers, and here we access the top (first) layer with viewer.layers[0]. Then, to access the actual image data stored in that layer, we retrieve it with .data:

PYTHON

# Get the image data for the first layer in Napari
image = viewer.layers[0].data

# Print the image values and type
print(image)
print(type(image))

OUTPUT

[[ 8  8  8 ... 63 78 75]
 [ 8  8  7 ... 67 71 71]
 [ 9  8  8 ... 53 64 66]
 ...
 [ 8  9  8 ... 17 24 59]
 [ 8  8  8 ... 17 22 55]
 [ 8  8  8 ... 16 18 38]]

 <class 'numpy.ndarray'>

You should see that a series of numbers are printed out that are stored in a Python data type called a numpy.ndarray. Fundamentally, this means that all images are really just arrays of numbers (one number per pixel). Arrays are just rectangular grids of numbers, much like a spreadsheet. Napari is reading those values and converting them into squares of particular colours for us to see in the viewer, but this is only to help us interpret the image contents - the numbers are the real underlying data.

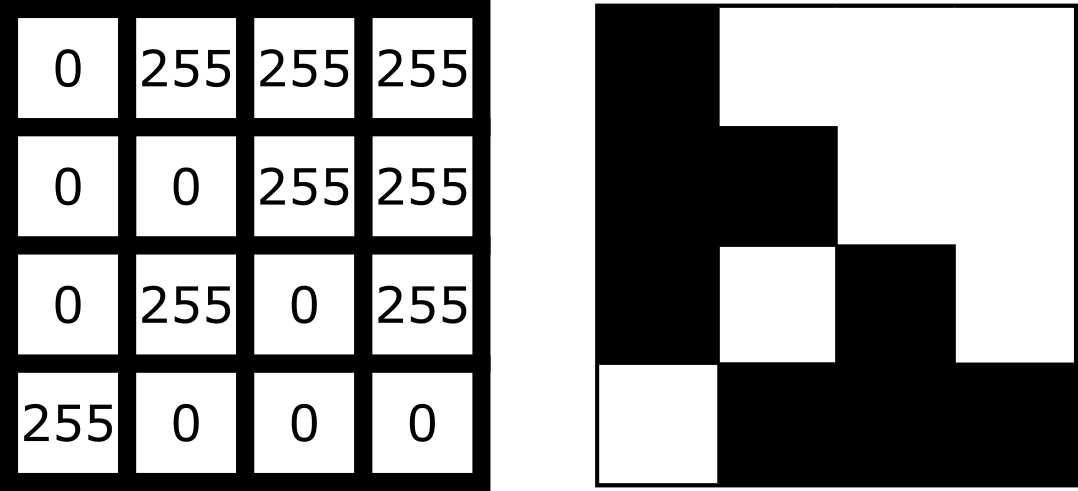

For example, look at the simplified image of an arrow below. On the left is the array of numbers, with the corresponding image display on the right. This is called a 4 by 4 image, as it has 4 rows and 4 columns:

In Napari this array is a numpy.ndarray. NumPy is a popular python package that provides ‘n-dimensional arrays’ (or ‘ndarray’ for short). N-dimensional just means they can support any number of dimensions - for example, 2D (squares/rectangles of numbers), 3D (cubes/cuboids of numbers) and beyond (like time series, images with many channels etc. where we would have multiple rectangles or cuboids of data which provide further information all at the same location).

Creating an image

---

Where do the numbers in our image array come from? The exact details of how an image is created will depend on the type of microscope you are using e.g.  widefield, confocal, superresolution etc. In general though, we have 3 main parts:

• Sample: the object we want to image e.g. some cells
• Objective lens: the lens that gathers the light and focuses it for detection
• Detector: the device that detects the light to form the digital image e.g. a CCD camera

To briefly summarise for a fluorescence microscopy image:
an excitation light source (e.g. a laser) illuminates the sample, and this light is absorbed by a fluorescent label. This causes it to emit light which is then gathered and focused by the objective lens, before hitting the detector. The detector might be a single element (e.g. in a laser-scanning microscope) or composed of an array of many small, light sensitive areas - these are physical pixels, that will correspond to the pixels in the final image. When light hits one of the detector elements it is converted into electrons, with more light resulting in more electrons and a higher final value for that pixel.

The important factor to understand is that the final pixel value is only ever an approximation of the real sample. Many factors will affect this final result including the microscope optics, detector performance etc.

Discussion

Read the ‘A simple microscope’ section of Pete Bankhead’s bioimage book.

• What are some factors that influence pixel values?
• Can you come up with suggestions for any more?

Image dimensions

---

Let’s return to our human mitosis image and explore some of the key features of its image array. First, what size is it?

We can find this out by running the following in our notebook:

PYTHON

image.shape

OUTPUT

(512, 512)

The array size (also known as its dimensions) is stored in the .shape. Here we see that it is (512, 512) meaning this image is 512 pixels high and 512 pixels wide. Two values are printed as this image is two dimensional (2D), for a 3D image there would be 3, for a 4D image (e.g. with an additional time series) there would be 4 and so on…

Image data type

---

The other key feature of an image array is its ‘data type’ - this controls which values can be stored inside of it. For example, let’s look at the data type for our human mitosis image - this is stored in .dtype:

PYTHON

image.dtype

OUTPUT

dtype('uint8')

We see that the data type (or ‘dtype’ for short) is uint8. This is short for ‘unsigned integer 8-bit’. Let’s break this down further into two parts - the type (unsigned integer) and the bit-depth (8-bit).

Type

---

The type determines what kind of values can be stored in the array, for example:

• Unsigned integer: positive whole numbers
• Signed integer: positive and negative whole numbers
• Float: positive and negative numbers with a decimal point e.g. 3.14

For our mitosis image, ‘unsigned integer’ means that only positive whole numbers can be stored inside. You can see this by hovering over the pixels in the image again in Napari - the pixel value down in the bottom left is always a positive whole number.

Bit depth

---

The bit depth determines the range of values that can be stored e.g. only values between 0 and 255. This is directly related to how the array is stored in the computer.

In the computer, each pixel value will ultimately be stored in some binary format as a series of ones and zeros. Each of these ones or zeros is known as a ‘bit’, and the ‘bit depth’ is the number of bits used to store each value. For example, our mitosis image uses 8 bits to store each value (i.e.  a series of 8 ones or zeros like 00000000, or 01101101…).

The reason the bit depth is so important is that it dictates the number of different values that can be stored. In fact it is equal to:

\[\large \text{Number of values} = 2^{\text{(bit depth)}}\]

Going back to our mitosis image, since it is stored as integers with a bit-depth of 8, this means that it can store \(2^8 = 256\) different values. This is equal to a range of 0-255 for unsigned integers.

We can verify this by looking at the maximum value of the mitosis image:

PYTHON

print(image.max())

OUTPUT

255

You can also see this by hovering over the brightest nuclei in the viewer and examining their pixel values. Even the brightest nuclei won’t exceed the limit of 255.

Challenge

Dimensions and data types

Let’s open a new image by removing all layers from the Napari viewer, then copying and pasting the following lines into the Napari console:

PYTHON

from skimage import data
viewer.add_image(data.brain()[9, :, :], name="brain")
image = viewer.layers["brain"].data

This opens a new 2D image of part of a human head X-ray.

• What are the dimensions of this image?

• What type and bit depth is this image?

• What are the possible min/max values of this image array, based on the bit depth?

Show me the solution

Dimensions

The image’s dimensions are (256, 256)

PYTHON

image.shape

OUTPUT

(256, 256)

Type and bit depth

The image’s type and bit depth are: unsigned integer 16-bit

PYTHON

image.dtype

OUTPUT

dtype('uint16')

Min and max

Based on a bit depth of 16, this image can store \(2^{16} = 65536\) values. As it is of type ‘unsigned integer’ this corresponds to a min and max of 0 and 65535.

Common data types

---

NumPy supports a very wide range of data types, but there are a few that are most common for image data:

NumPy datatype	Full name
uint8	Unsigned integer 8-bit
uint16	Unsigned integer 16-bit
float32	Float 32-bit
float64	Float 64-bit

uint8 and uint16 are most common for images from light microscopes. float32 and float64 are common during image processing (as we will see in later episodes).

Choosing a bit depth

---

Most images are either 8-bit or 16-bit - so how to choose which to use? A higher bit depth will allow a wider range of values to be stored, but it will also result in larger file sizes for the resulting images. In general, a 16-bit image will have a file size that is about twice as large as an 8-bit image if no compression is used

The best bit depth choice will depend on your particular imaging experiment and research question. For example, if you know you have to recognise features that only differ slightly in their brightness, then you will likely need 16-bit to capture this. Equally, if you know that you will need to collect a very large number of images and 8-bit is sufficient to see your features of interest, then 8-bit may be a better choice to reduce the required file storage space. As always it’s about choosing the best fit for your specific project!

For more information on bit depths and types - we highly recommend the ‘Types & bit-depths’ chapter from Pete Bankhead’s free bioimage book.

Callout

Clipping and overflow

It’s important to be aware of what image type and bit depth you are using. If you try to store values outside of the valid range, this can lead to clipping and overflow.

• Clipping: Values outside the valid range are changed to the closest valid value. For example, storing 1000 in a uint8 image may result in 255 being stored instead (the max value)

• Overflow: For NumPy arrays, values outside the valid range may be ‘wrapped around’ or create an OverflowError, depending on what version of NumPy is installed. Older versions of NumPy may wrap the values around, so storing 256 in a uint8 image (max 255) would give 0, 257 would give 1 and so on… Newer versions of NumPy will raise an OverflowError.

Clipping and overflow result in data loss - you can’t get the original values back! So it’s always good to keep the data type in mind when doing image processing operations (as we will see in later episodes), and also when converting between different bit depths.

Coordinate system

---

We’ve seen that images are arrays of numbers with a specific shape (dimensions) and data type. How do we access specific values from this array? What coordinate system is Napari using?

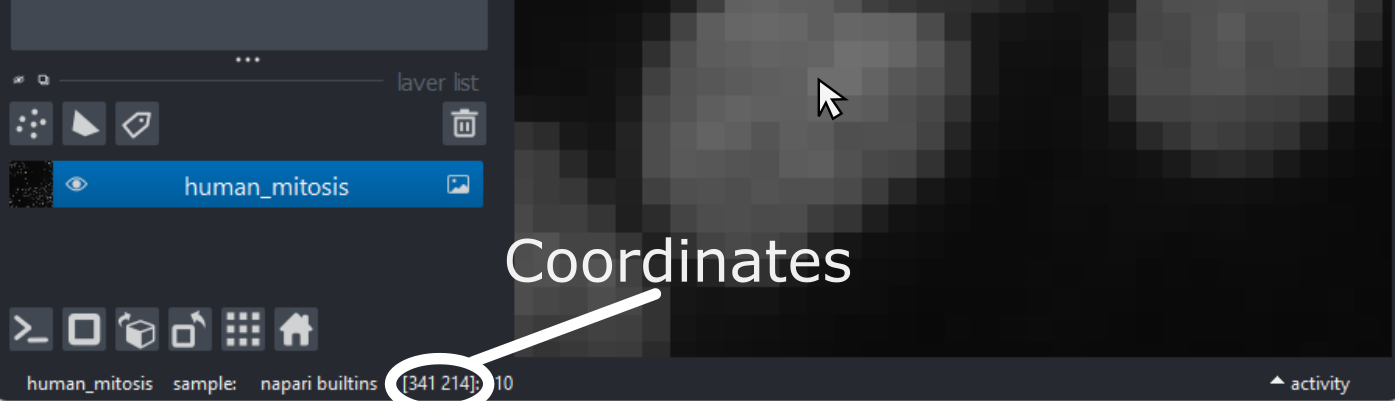

To look into this, let’s hover over pixels in our mitosis image and examine the coordinates that appear to the left of the pixel value. If you closed the mitosis image, then open it again by removing all layers and selecting: File > Open Sample > napari builtins > Human Mitosis:

As you move around, you should see that the lowest coordinate values are at the top left corner, with the first value increasing as you move down and the second value increasing as you move to the right. This is different to the standard coordinate systems you may be used to (for example, from making graphs):

Note that Napari lists coordinates as [y, x] or [rows, columns], so e.g. [1,3] would be the pixel in row 1 and column 3. Remember that these coordinates always start from 0 as you can see in the diagram below:

For the mitosis image, these coordinates are in pixels, but
images can also be scaled based on resolution to represent distances in the physical world (e.g. in micrometres). This information is often called pixel size and is stored in the image metadata. Also, bear in mind that images with more dimensions (e.g. a 3D image) will have longer coordinates like [z, y, x]…

Challenge

Reading and modifying pixel values

First, make sure you only have the human mitosis image open (close any others). Run the following line in the console to ensure you are referencing the correct image:

PYTHON

# Get the image data for the layer called 'human_mitosis'
image = viewer.layers["human_mitosis"].data

Pixel values can be read by hovering over them in the viewer, or by running the following in the console:

PYTHON

# Replace y and x with the correct y and x coordinate e.g. image[3, 5]
print(image[y, x])

Pixel values can be changed by running the following in the console:

PYTHON

# Replace y and x with the correct y and x coordinate, and
# 'pixel_value' with the desired new pixel value e.g. image[3, 5] = 10
image[y, x] = pixel_value
viewer.layers["human_mitosis"].refresh()

Given this information:

1. What is the pixel value at x=213 and y=115?
2. What is the pixel value at x=25 and y=63?
3. Change the value of the pixel at x=10 and y=15 to 200. Check the new value - is it correct? If not, why not?
4. Change the value of the pixel at x=10 and y=15 to 300. Check the new value - is it correct? If not, why not?

Show me the solution

1

PYTHON

image[115, 213]

OUTPUT

162

2

PYTHON

image[63, 25]

OUTPUT

9

3

PYTHON

image[15, 10] = 200
viewer.layers["human_mitosis"].refresh()

print(image[15, 10])

OUTPUT

200

The new value is correct. If you zoom into the top left corner of the image, you should see the one bright pixel you just created.

4

PYTHON

image[15, 10] = 300

ERROR

OverflowError                             Traceback (most recent call last)
Cell In[8], line 1
----> 1 image[15, 10] = 300

OverflowError: Python integer 300 out of bounds for uint8

An OverflowError occurs when you try to update this pixel value. This is because 300 exceeds the maximum value for this 8-bit image (max 255).

Key Points

• Digital images are made of pixels
• Digital images store these pixels as arrays of numbers
• Light microscopy images are only an approximation of the real sample
• Napari (and Python more widely) use NumPy arrays to store images - these have a shape and dtype
• Most images are 8-bit or 16-bit unsigned integer
• Images use a coordinate system with (0,0) at the top left, x increasing to the right, and y increasing down

Content from Using Napari through Jupyter

---

Last updated on 2026-09-22 | Edit this page

Overview

Questions

• How can you interact with Napari in a notebook?
• How are images represented in the computer?
• What are the main structures that Napari uses to represent imaging data?
• How can we get basic measurements out from this

Objectives

• Understand how to open and interact with Napari via JupyterLab notebooks

Instead of entering Python commands in Napari’s built‑in console, we will write and run our code in a computational notebook using JupyterLab. This allows us to build a reusable workflow that is easy to repeat and adapt.

We have kept the level of programming knowledge required to the minimum possible and all code can be run by copy and pasting, so don’t worry if you don’t understand it all yet.

Most, if not all, of the functions we will use in this lesson are also accessible via various Napari plugins, so the analysis pipeline could also be assembled within Napari if you prefer.

Creating a notebook in JupyterLab

---

1. Activate your Napari environment

Open the terminal (the same one you used for Napari installation: see ‘Opening a terminal’ section of the setup instructions), and activate the environment you created for Napari:

BASH

cd napari-ai-workshop
source .venv/bin/activate

2. Launch JupyterLab

Start JupyterLab:

BASH

jupyter lab

The JupyterLab interface should appear in a browser window.

3. Create and navigate to your workshop folder

It is best practice to keep all your project files together in a dedicated folder.

• Use the file browser on the left-hand side
• Navigate to a location that is easy to find again (like your Desktop)
• Right-click to create a new folder and name it workshop-notebooks

4. Create a new notebook

Once you are inside the workshop-notebooks folder, create a new notebook.

For example by using the JupyterLab menu bar to select: File > New > Notebook > Python 3 (ipykernel)

This will open a new Python notebook.

5. Name your notebook

Renaming your notebook immediately helps keep your workflow tidy and makes it easier to find later.

Right click the default name at the top of the notebook tab (e.g., Untitled.ipynb), and select Rename Notebook....

Enter a meaningful name, for example: image_display.ipynb.

About notebooks

---

A notebook is made up of building blocks called cells.

For this workshop, we will only use Code Cells.

When you run a Code Cell, the output typically appears underneath it. This could be a number, text, a table, or an error message.

By splitting code up into cells, you can run one specific part of your code without having to re-run the whole file and get instant feedback.

Be careful about the order of your notebook cells. Running them out of sequence can leave variables outdated or missing, which can lead to confusing results.

Using Python inside a notebook

---

Run each of the following examples in separate notebook cells so you can clearly see the output after each step.

PYTHON

# Everything after a hash (#) is a comment and is ignored by Python.
# Use comments to explain what you're doing.

If you want to create another cell, click the + button in the toolbar or use the Insert Cell Below button on the right side of the cell.

PYTHON

# Python can do basic calculations
1 + 1
1 + 2
# and will display the last output

OUTPUT

3

PYTHON

# Python can assign values to variables
one = 1
two = one + one

Notice that there is no output.

PYTHON

# Variables store values rather than return them
# To see their value write the variable name
two

OUTPUT

2

Note: In a standard Python script, writing a variable name on its own does nothing and you must use print() to show output.

PYTHON

# Python's print function
print("one plus one is", two)
print("one plus two is", one + two)

OUTPUT

one plus one is 2
one plus two is 3

Using Napari from within a notebook

---

First import napari

PYTHON

# Import napari package
import napari

Then open it from the notebook

PYTHON

# Open Napari from the notebook
viewer = napari.Viewer()

Finally open a sample image.

PYTHON

# Open Cells (3D + 2Ch) sample image in napari's viewer
viewer.open_sample("napari", "cells3d")

The output should look like this:

OUTPUT

[<Image layer 'membrane' at 0x1853b7738c0>,
 <Image layer 'nuclei' at 0x1853c844710>]

The memory addresses (0x1853b7738c0 and 0x1853c844710) will be different for you. They indicate the locations in memory where Python happened to store those layer objects.

Napari’s viewer should open in a separate window, preloaded with the cells3D sample image.

Now that we are able to interact with Napari via a lab-book, let’s now look more into the structure of imaging data.

Key Points

• You can interact with Napari both through the interface, it’s built-in console or through a Jupyter lab notebook
• Napari represents all elements for viewing (Images, Points, etc) as layers

Content from Image Segmentation: Basic Concepts

---

Last updated on 2026-09-22 | Edit this page

Overview

Questions

• How do we perform instance segmentation in Napari?
• How do we measure cell size with Napari?

Objectives

• Use simple operations (like erosion and dilation) to clean up a segmentation.
• Use connected components labelling on a thresholded image.
• Calculate the number of cells and average cell volume.
• Save and edit your workflow to reuse on subsequent images.
• Perform more complex cell shape analysis using scikit-image’s regionprops.

Introduction

---

Now that we are able to do basic operations in Napari, let’s start doing something more applicable by segmenting some cells and measuring key properties about them.

Let’s create another notebook that we made from the last lesson and call it instance_segmentation.ipynb

Let’s import napari and open up a viewer as we did last time.

PYTHON

# Import the napari package into the notebook
import napari

# Start the viewer
viewer = napari.Viewer()

#Load in the cells image
viewer.open_sample("napari", "cells3d")

What is segmentation?

---

In order to count the number of cells, we must ‘segment’ the nuclei in this image. Segmentation is the process of labelling each pixel in an image e.g. is that pixel part of a nucleus or not? Segmentation comes in two main types - ‘semantic segmentation’ and ‘instance segmentation’. In this section we’ll describe what both kinds of segmentation represent, as well as how they relate to each other, using some simple examples.

Semantic segmentation

---

In a semantic segmentation, pixels are grouped into different categories (also known as ‘classes’). In this example, we are going to use classic image processing techniques to assign each pixel in the imate to one of two classes: nuclei or background. Importantly, it doesn’t recognise which pixels belong to different objects of the same category - for example, here we don’t know which pixels belong to individual, separate nuclei. This is the role of ‘instance segmentation’ that we’ll look at next.

This episode uses classic image processing techniques to perform the segmentation. If you would like to find more, please check out the extra Filtering and Thresholding episode.

First, we will blur the image using a Gaussian kernel. You can play with how much the images is blurred by adjusting sigma property in the gaussian function.

PYTHON

# Create a semantic segmentation

# Import the functions we need from scikit-image
from skimage.filters import threshold_otsu, gaussian

# Access the nuclei channel from the viewer
image = viewer.layers["nuclei"].data

# Smooth the image
blurred = gaussian(image, sigma=3)

# Add the image to the viewer
viewer.add_image(blurred)

# Compute a threshold
threshold = threshold_otsu(blurred)

print("The threshold picked is:", threshold)

OUTPUT

The threshold picked is: 0.1407702761280905

If you do pick a different blurring kernel, it might have a knock on effect on the threshold that the Otsu method chooses.

Using our threshold on the blurred image we create a semantic segmentation.

PYTHON

# Create a semantic segmentation
semantic_seg = blurred > threshold

# Add as a labels layer to the viewer
viewer.add_labels(semantic_seg)

OUTPUT

<Labels layer 'semantic_seg' at 0x1f157459820>

In the Napari viewer you should see the image above. Mouse over the pixels and check their intensity. You should notice that the pixels assigned to background are assigned to 0 and the pixels categorized as nuclei are have a value of 1.

Instance segmentation

---

Now we will go about creating an ‘instance segmentation’ for this image. Instance segmentations recognise which pixels belong to individual ‘instances’ of our category (nuclei). This is the kind of segmentation we will need in order to count the number of nuclei (and therefore the number of cells) in our image.

Note that it’s common for instance segmentation to be created by first making a semantic segmentation, then splitting the resulting category from the semantic segmentation into individual instances. This isn’t always the case though - it will depend on the type of segmentation method you use.

We will use the the label function from scikit-image to create an instance segmentation.

The label function is an example of connected component analysis. Connected component analysis will go through the entire image, determine which parts of the segmentation are connected to each other and form separate objects. Then it will assign each connected region a unique integer value.

PYTHON

# Instance segmentation

# Import the label function
from skimage.measure import label

# Run the label function on the mask image
instance_seg = label(semantic_seg)

# Add the result to the viewer
viewer.add_labels(instance_seg)

You should see the above image in the Napari viewer. The different colours are used to represent the labels of separate objects. Again, mouse over the image and notice the change of pixels. The background pixels are still assigned to 0, but each instance of the nuclei has a different label value, which has a different color assigned to that value.

Counting the nuclei

---

Because the instance segmentation assigns a different integer value starting at 1 and increasing in steps of 1 (1, 2, 3, …) to each object, counting the number of nuclei can be done very easily by taking the maximum value of the instance segmentation image.

PYTHON

# Count the nuclei
number_of_nuclei = instance_seg.max()
print("Number of nuclei: ", number_of_nuclei)

OUTPUT

Number of nuclei: 18

Using napari-skimage plugin to measure nuclei size

---

In the napari toolbar, open Layers > Measure > Regionprops (labels) (skimage). You should see a dialog like this:

Select instance_seg in the ‘Labels layer’ drop down box and nuclei in the ‘Intensity Image Layer’ drop down box. You can choose to measure various shape properties with this plugin but for now let’s keep it simple, making sure that only area, centroid and label are selected. You will need to hold down ctrl (or ⌘ on Mac) to select multiple items in the list.

Click Analyze - a table of numeric values should appear in napari. If it opens in an inconvenient location, you can click and drag on the header containing the x, and other icons next to the table window to reposition it.

Regionprops

---

Before, we used the napari‑skimage plugin to create a table with properties of the nuclei. The same properties can also be computed using scikit-image directly in our notebook.

PYTHON

# Create a Regionprops table

# Import tools
from skimage.measure import regionprops_table
import pandas as pd

# Compute region properties
props = regionprops_table(
    label_image=instance_seg,
    properties=["label", "area", "centroid"]
)

# Convert to a pandas DataFrame
props_df = pd.DataFrame(props)

# Display the table
props_df

Sorting and inspecting the results

---

Regionprops can generate a lot of information on the shape and size of each connected region. For now we will focus only on the column headed area, which shows the size in pixels.

Let’s sort our table so that it is easier to see the extreme values.

PYTHON

# Sort the table based on cell size (area)
sorted_props_df = props_df.sort_values("area")

# Display the table
sorted_props_df

OUTPUT

    label      area  centroid-0  centroid-1  centroid-2
0       1   43945.0   39.089407   87.218409   53.622232
1       2   27187.0   33.299555  219.697392  244.239931
2       3  202258.0   34.401952  195.413526   76.441688
3       4   47652.0   34.303828  157.445417  110.678712
4       5   54018.0   31.364397  201.457755  173.293958
5       6  113935.0   36.186343   37.206205  183.966147
6       7   79226.0   33.722503   85.528072  137.286535
7       8  102444.0   34.497628  136.998624  215.951993
8       9   34421.0   35.555271   18.081346   24.130676
9      10   35227.0   34.429500   32.455418   80.085531
10     11   14525.0   31.464578  246.703408  207.343477
11     12    3258.0   35.920810    2.583487   80.581338
12     13    2000.0   32.342000  187.727500    1.962500
13     14     240.0   33.233333    0.962500  252.758333
14     15     155.0   29.787097  254.696774   51.258065
15     16    4709.0   39.099809    3.779996  208.094500
16     17     522.0   35.431034   24.015326  254.118774
17     18       7.0   33.000000   62.714286    0.000000

The largest nucleus

According to the table, nucleus 3 is larger than the other nuclei (202258 pixels). In the what is an image lesson, we learnt to use the mouse pointer to find particular values in an image. Hovering the mouse pointer over the light purple nuclei at the bottom left of the image we see that these apparently four separate nuclei have been labelled as a single nucleus.

In the layer controls of the instance_seg layer we can confirm this by selecting label 3 and enabling show selected.

Challenge

Why Are Separate Nuclei Getting the Same Label?

In the image above, three of the light purple nuclei are visibly touching, so it is not surprising that they have been considered as a single connected component and thus labelled as a single nucleus. What about the fourth apparently separate nucleus? Why does it have the same label?

Show me the solution

It is important to remember that this is a three-dimensional image and so pixels will be considered as “connected” if they are adjacent to another segmented pixel in any of the three dimensions (and not just in the two-dimensional slice that you are looking at).

You may remember from our first lesson that we can change to 3D view mode by pressing the button. Try it now.

You should see the image rendered in 3D, with a clear join between the upper most light purple nucleus and its neighbour.

The smallest nucleus

The smallest nucleus is labelled 18, with a size of 7 pixels. We can use the position data (the centroid columns) in the table to help find this nucleus. We need to navigate to slice 33 and get the mouse near the top left corner (33 63 0) to find label 18 in the image.

Nucleus 18 is right at the edge of the image, so is only a partial nucleus. Partial nuclei will need to be excluded from our analysis. We’ll do this later in the lesson with a clear border filter. However, first we need to solve the problem of joined nuclei.

Separating joined nuclei

---

Our first problem is how to deal with four apparently distinct nuclei (labelled with a light purple colour) being segmented as a single nucleus.

Erosion

To separate our nuclei, we can ‘erode’ our segmentation. Erosion is a type of filter, similar to those we covered in the filters and thresholding episode. It will make all segmented nuclei smaller, by setting pixels at their edge to zero.

The size / shape of the region that gets set to zero is controlled by the filter’s ‘footprint’. We’ll use scikit-image’s ball function to generate a sphere to use as the footprint. Any pixels closer to the edge of the nucleus than the radius of this sphere will be set to zero.

Create a new cell and run:

PYTHON

# Erode the semantic segmentation

# import tools
from skimage.morphology import erosion, ball

# Erosion with a radius 1 ball
eroded_mask = erosion(semantic_seg, footprint = ball(1))
viewer.add_labels(eroded_mask, name = "eroded_ball_1")

Challenge

What is a good radius?

We can change the radius of the footprint to control the amount of erosion.

Try eroding the semantic_seg layer with different integer values for the radius. What radius do you need to ensure all nuclei are separate?

Note that larger radius values will take longer to run on your computer.

Keep your radius values <= 15.

Show me the solution

To test different values of radius, you can assign a different value to radius, e.g. radius = 5 and rerun the last two lines from above. Or you can try with a Python for loop which enables us to test multiple values of radius quickly.

PYTHON

# Erode the mask using a ball

# Radius 5
eroded_mask = erosion(semantic_seg, footprint=ball(5))
# Add the eroded mask as a new layer in Napari
viewer.add_labels(eroded_mask, name="eroded_ball_5")

# Radius 10
eroded_mask = erosion(semantic_seg, footprint=ball(10))
# Add the eroded mask as a new layer in Napari
viewer.add_labels(eroded_mask, name="eroded_ball_10")

# Radius 15
eroded_mask = erosion(semantic_seg, footprint=ball(15))
# Add the eroded mask as a new layer in Napari
viewer.add_labels(eroded_mask, name="eroded_ball_15")

Radius 5

Some nuclei that are touching remain partially connected.

Radius 10

Erosion with a radius of 10 removes enough pixels to separate touching nuclei
while still keeping the nuclei you want to analyse.

Radius 15

Erosion with a radius of 15 is too strong: several nuclei become over‑eroded
and some disappear completely.

Challenge

For-loop to test different radii

Try using a Python for loop to test several radius values.

Show me the solution

You can change the radius manually (for example, radius = 5) and re‑run the erosion each time.
But if you want to test many radius values quickly, a Python for loop lets you repeat the same steps for each radius in a list.

PYTHON

# List of radii to test
radii = [5, 10, 15]
# A for-loop that tests several radii
for radius in radii:
    # Make a name for the output layer
    layer_name = "eroded_ball_" + str(radius)
    # Erode the mask using this radius
    eroded_mask = erosion(semantic_seg, footprint=ball(radius))
    # Add the eroded mask as a new layer in Napari
    viewer.add_labels(eroded_mask, name=layer_name)

It is also possible to run the erosion function through a plugin: Layers > Filter > Morphology > Binary Morphology (napari skimage).

Instance segmentation using the eroded mask

Now we have separate nuclei, lets try creating instance labels again.

PYTHON

# Create a new instance segmentation using the eroded mask
eroded_mask = erosion(semantic_seg, footprint=ball(10))
instance_seg = label(eroded_mask)

# Remove old instance segmentation
viewer.layers.remove('instance_seg')

# Add new instance segmentation
viewer.add_labels(instance_seg)

Looking at the image above, there are no longer any incorrectly joined nuclei.

Dilation

We managed to separate the nuclei, however performing any size or shape analysis on these nuclei will be flawed, as they are heavily eroded.

We can largely undo the erosion by using scikit-image’s expand labels function.

The expand labels function is a filter which performs a dilation, expanding the bright (non-zero) parts of the image. The expand labels function adds an extra step to stop the dilation when two neighbouring labels meet, preventing overlapping labels.

PYTHON

from skimage.segmentation import expand_labels

# Dilate eroded instance segmentation with the same radius
instance_seg = expand_labels(instance_seg, 10)

# Remove old instance segmentation
viewer.layers.remove('instance_seg')

# Add new instance segmentation
viewer.add_labels(instance_seg)

There are now 19 apparently correctly labelled nuclei that appear to be the same shape as in the original mask image.

Opening

In order to create a correct instance segmentation we have performed a mask erosion followed by a label expansion. This is a common image operation often used to remove background noise, known as as opening, or an erosion followed by a dilation. In addition to helping us separate instances it will have the effect of removing objects smaller than the erosion footprint, in this case a sphere with radius 10 pixels.

Challenge

Is the erosion completely reversible?

If we compare the eroded and expanded image with the original mask, what will we see?

Show me the solution

Looking at the above image we can see some small mismatches around the edges of most of the nuclei. It should be remembered when looking at this image that it is a single slice though a 3D image, so in some cases where the differences look large (for example the nucleus at the bottom right) they may still be only one pixel deep. Will the effect of this on the accuracy of our results be significant?

Removing Border Cells

---

Now we return to the second problem with our initial instance segmentation, the presence of partial nuclei around the image borders. As we’re measuring nuclei size, the presence of any partially visible nuclei could substantially bias our statistics.

We can remove these from our analysis using scikit-image’s clear border function.

PYTHON

# Remove partial nuclei touching the image border

# Import scikit-image's clear_border
from skimage.segmentation import clear_border

# Clear border
instance_seg = clear_border(instance_seg)

# Remove old instance segmentation
viewer.layers.remove('instance_seg')

# Add new instance segmentation
viewer.add_labels(instance_seg)

We now have an image with 11 clearly labelled nuclei. You may notice that the smaller nucleus (dark orange) near the top left of the image has been removed even though we can’t see where it touches the image border. Remember that this is a 3D image and clear border removes nuclei touching any border. This nucleus has been removed because it touches the top or bottom (z axis) of the image.

Let’s check the nuclei count as we did above.

PYTHON

# First count the nuclei
number_of_nuclei = instance_seg.max()
print("Number of nuclei: ", number_of_nuclei)

OUTPUT

Number of nuclei: 19

Why are there 19 nuclei?

When we ran clear_borders the pixels corresponding to border nuclei were set to zero, however the total number of labels in the image was not changed, so whilst there are 19 labels in the image some of them have no corresponding pixels. The easiest way to correct this is to relabel the image (and replace the old instance segmentation in the viewer.)

PYTHON

# Relabel
instance_seg = label(instance_seg)

# Remove old instance segmentation
viewer.layers.remove('instance_seg')

# Add relabeled instance segmentation
viewer.add_labels(instance_seg)

# Number of nuclei after relabling
number_of_nuclei = instance_seg.max()
print("Number of nuclei:", number_of_nuclei)

OUTPUT

Number of nuclei: 11

Number of pixels per nucleus

---

Now that your instance segmentation is correct, you can finish the analysis in our notebook.

Let’s start by counting the pixels per nucleus like we did before.

PYTHON

# Count the pixels per nucleus

# Extract region properties
props = regionprops_table(
    instance_seg,
    properties=["label", "area"]   # 'area' = number of pixels
)

# Convert to a pandas DataFrame
props_df = pd.DataFrame(props)

props_df

Are these pixel counts useful measurements? Pixel counts depend on image resolution, rather than the real size of a biological structure. This means images of the exact same nuclei taken with different settings could give vastly different values for the number of pixels.

This is why biologists convert pixel counts into physical units like µm³ that allow comparisons across experiments, microscopes, and labs.

Volume per nuclei

---

To convert to volumes we need to know the pixel size, which tells us the physical measurement of each dimension of a pixel. This information is often stored inside the image metadata that comes with the pixel data itself.

Unfortunately the sample image we’re using in this lesson has no metadata. Fortunately the image pixel sizes can be found in the scikit-image documentation. So we can assign a pixel size of 0.26μm (x axis), 0.26μm (y axis) and 0.29μm (z axis).

Using this pixel size, we can then calculate the nucleus volume in cubic micrometres.

PYTHON

# Volume of a single voxel in cubic micrometres
voxel_volume = 0.26 * 0.26 * 0.29

# Add a physical volume column
props_df["volume_um3"] = props_df["area"] * voxel_volume

props_df

Once you know the voxel size, pandas makes the conversion and analysis extremely easy:

PYTHON

# Quick stats using pandas
props_df["volume_um3"].describe()

OUTPUT

count      11.000000
mean      855.980145
std       178.497656
min       602.391712
25%       729.190384
50%       800.019636
75%       983.473868
max      1181.493872
Name: volume_um3, dtype: float64

Key Points

• Connected component analysis (the label function) was used to assign each connected region of a mask a unique integer value. This produces an instance segmentation from a semantic segmentation.
• Erosion and dilation filters were used to correct the instance segmentation. Erosion was used to separate individual nuclei. Dilation (or expansion) was used to return the nuclei to their (approximate) original size.
• Partial nuclei at the image edges can be removed with the clear_border function.
• The napari-skimage plugin can be used to interactively examine the nuclei shapes.

Content from Segment Anything for Microscopy (μSAM)

---

Last updated on 2026-09-22 | Edit this page

Overview

Questions

• What is μSAM and how does it differ from classical image‑processing?
• When do traditional image analysis methods fail, and how can AI models help in those cases?

Objectives

• Think about when classical methods succeed or fail

• Use μSAM area and point prompts to aid segmentation and explore automatic mode, to segment a live‑cell image inside napari.

Segment unlabeled live cells

---

In this episode we will use a deep-learning model to segment an image of unlabeled live cells.

But before we do so, let’s apply traditional image analysis methods on this image to see how these perform.

Create a new notebook called livecells.ipynb and run the code below to open the unlabeled live-cell sample image that comes with the μSAM plugin.

PYTHON

# Import napari
import napari

PYTHON

# Open a sample image in the viewer
viewer = napari.Viewer()
viewer.open_sample("micro_sam", "micro_sam-livecell")

The output should look like this.

OUTPUT

[<Image layer 'livecell' at 0x2352a276ba0>]

and the image below should open in the napari viewer.

Take a moment to look at the image. Check the contrast, hover over pixels to see their values, and confirm whether the data is 2D or 3D before continuing.

For details on the dataset this image came from see https://doi.org/10.1038/s41592-021-01249-6. Let’s try to segment these cells using the image analysis approaches we explored in the first half of the workshop.

Import the tools we need from skimage

We will import the tools from skimage. Except disk from skimage.morphology, we used all of these in the previous episode.

PYTHON

# Import the functions we need from scikit-image
from skimage.filters import threshold_otsu, gaussian
from skimage.morphology import erosion, disk
from skimage.measure import label
from skimage.segmentation import expand_labels

Challenge

Disk vs Ball Structure Element

You may notice that in this part of the workshop we import disk from skimage.morphology, whereas earlier we used a ball.

Why should you use a disk‑shaped footprint rather than a ball‑shaped footprint when performing morphological operations on this image?

solution

Morphological operations rely on a structuring element whose shape must match the dimensionality of the data. Because the image we are working with is two‑dimensional, the appropriate structuring element is a disk footprint (a circular shape defined in the x–y plane).

A ball footprint, by contrast, is a three‑dimensional structuring element. It assumes the presence of a z‑axis and is only meaningful when working with three-dimensional images.

We are now going to use these tools to create an instance segmentation of the cells, following the same steps we used in the previous episode.

Smooth the image

PYTHON

# Access the image from the viewer
image = viewer.layers["livecell"].data

Compute a threshold and create a mask

PYTHON

# Smooth image
blurred = gaussian(image, sigma=3)
viewer.add_image(blurred)

# Compute threshold
threshold = threshold_otsu(blurred)

# Create mask
mask = blurred < threshold

# Add to viewer
viewer.add_labels(mask)

Erode the mask and label instances

PYTHON

# Erode mask
eroded_mask = erosion(mask, footprint=disk(3))

# Label instances
eroded_labels = label(eroded_mask)

# Add to viewer
viewer.add_labels(eroded_labels)

Dilate labels

PYTHON

# Dilate labels
instance_seg = expand_labels(eroded_labels, 3)

# Add to viewer
viewer.add_labels(instance_seg)

Below is the result of applying our traditional workflow to the unlabeled live‑cell image.

While many of the cell regions have been identified. Some cells have been largely missed out or broken apart.

This splitting is called over‑segmentation, as shown in the example highlighted in the red box below.

Challenge

Segmenting an unlabeled image

Why do classical image‑processing methods struggle here?

Show me the solution

Traditional image-processing methods depend on clear intensity differences between structures of interest and the background.

In fluorescence imaging, traditional methods usually work well because labeled structures appear bright and distinct.

But in label‑free imaging, cells are more heterogeneous in appearance and often have only subtle intensity differences from the background (with some areas being brighter, and others darker in this sample), making thresholding unreliable.

Image analysis methods often rely on labels like fluorescent proteins. However, labeling may not always be possible or desirable.

Label‑free settings are an example of situations in which traditional image analysis methods of microscopy images can become significantly harder.

AI-based segmentation methods

---

AI‑based segmentation methods can address these limitations.

AI models used for image segmentation are trained on large collections of images paired with “ground‑truth” segmentation masks.

These masks may come from manual annotation or semi‑automated annotation refined by experts.

During training, the model repeatedly predicts segmentation masks and compares them to the ground truth.

The difference between the prediction and the ground‑truth mask is measured and the model then adjusts its internal parameters to reduce this error.

Once trained, the model can apply what it learned to new images.

The nature and diversity of the training data determines how well the model generalises to new cell types and imaging modalities.

μSAM

---

The Segment Anything Model (SAM) was developed by Meta AI. It was released in 2023 alongside the dataset, a collection of over 1.1 billion segmentation masks across 11 million images.

μSAM is a microscopy‑adapted version of the Segment Anything Model designed specifically for biological images.

As a napari plugin, μSAM integrates directly into the napari image viewer. You can load images, add area or point “prompts”, run automatic segmentation, and immediately inspect or refine the results.

Open Annotator 2d

Remove all layers except for the livecells layer from the napari viewer, and open the μSAM annotator.

plugins > Segment Anything for Microscopy > Annotator 2d

This opens an Annotator 2d window, where you can select an image and model, and interactively segment objects.

In the layer list you will see a number of new layers appear: - prompts - point_prompts - committed_objects - auto_segmentation - current_object

We will have a look at these layers after computing the “embeddings”.

Embeddings

When μSAM processes an image, it needs to compute the image’s embeddings. The embeddings contain a compact, multi-dimensional representation of the imaging data that captures it’s features.

This is a computationally expensive step that is done only once per image for the specific model you are using.

Once the embedding is computed, μSAM can deliver fast, interactive segmentation, as the embedding is reused for every prompt on this image.

In the Annotator 2d window, have a look at the Embedding Settings. Here, you can load pre-computed embeddings and select things like the size of the model (the bigger the model the longer it will take to compute the embeddings).

For this workshop we will use the default settings to compute the embeddings by clicking on Compute Embeddings.

Area prompts

Now that we have computed the embeddings, let’s first explore the area prompts.

Area prompts let you draw a region on the image and μSAM will propose a segmentation for the object inside that region.

Box prompt

We start with the simplest area prompt: the box prompt.

Creating a box prompt: - Select the prompts layer from the layer list and pick the box tool
- Click and drag on the image to draw a rectangular region around one cell - In the Annotator 2d window click on Segment Object - To “commit” the object, click Commit Object in the Annotator window

Challenge

Shortcuts, multiple objects at once, and polygons

• Use keyboard shortcuts to segment and commit an object.
• Use multiple box prompts at once to segment multiple objects.
• Use a polygon prompt to segment an irregularly shaped cell

solution

Using shortcuts After creating a box prompt, press S to segment and C to commit the object.

Segmenting multiple objects at once In the prompts layer, draw several box prompts before running Segment Object. μSAM will generate a segmentation for each box simultaneously. After reviewing them, click Commit Object(s) to add all segmentations at once.

Using a polygon prompt Select the polygon tool in the prompts layer. Click around the outline of an irregular cell to define a custom shape. Once the polygon is closed, run Segment Object to generate the segmentation.

Point prompts

Point prompts let you guide μSAM using single points rather than areas.

They are especially useful when cells are small, touching, or hard to isolate with boxes.

There are two types of point prompts: - Positive points - Negative points

Creating point prompts - Select the point_prompts layer in the layer list - Choose the positive point tool - Click on the image to place a point - In the Annotator 2d window, click Segment Object - Commit the object if the segmentation looks correct

Positive points should be placed inside the cell you want to segment.

Negative points help μSAM avoid including neighbouring cells or background regions.

The image shows a single positive point prompt placed on one of the cells.

Challenge

Batched segmentation using point prompts

What happens when you place point prompts in multiple cells and click Segment Object without ticking the batched option?

What happens if you now toggle it on and click on Segment Object again?

solution

By default μSAM treats all point prompts as belonging to one single object.

With batched enabled, μSAM treats each point prompt independently and μSAM returns one segmentation per point, producing multiple separate cell masks.

Automatic segmentation

Automatic segmentation lets μSAM propose all cell masks in the image without any prompts.

To run automatic segmentation using the default settings: - In the Annotator 2d window click on Automatic Segmentation

μSAM will generate a full‑image segmentation and place it in the auto_segmentation layer

If automatic segmentation clashes with existing committed objects (overlaps, duplicates): - Delete the committed_objects layer - Re‑run Automatic Segmentation - Commit again (μSAM will create a new committed‑objects layer automatically)

The results of the automatic segmentation will look like the image below.

Automatic segmentation in a Jupyter notebook

μSAM also supports automatic segmentation directly from Python.

This gives you a full‑image segmentation directly in Jupyter, using the same μSAM model and settings as the napari plugin.

Create a new Jupyter notebook called livecells-microsam.ipynb to run the code blocks below.

PYTHON

# import packages
from micro_sam.automatic_segmentation import get_predictor_and_segmenter, automatic_instance_segmentation
import napari

PYTHON

viewer = napari.Viewer()
image = viewer.layers["livecell"].data

PYTHON

# Load model
predictor, segmenter = get_predictor_and_segmenter(model_type="vit_b_lm")

# Run automatic segmentation
auto_seg = automatic_instance_segmentation(
    predictor=predictor,
    segmenter=segmenter,
    input_path=image        # you can also pass a file path
)
# Add to viewer
viewer.add_labels(auto_seg)

Additional resources and other functionality

---

Other μSAM functionality includes fine tuning models and segment objects across multiple slices of a stack for 3D volumetric or time‑lapse data with their 3D Annotator and Tracking Annotator respectively. It does a decent job at matching the masks of the same object across slices, assigning consistent labels throughout the volume or across time.

Learners who want to explore μSAM further can have a look at μSAM’s:

• Documentation which includes guides on how to get set up and use their annotators.

• Video tutorials with walkthroughs showing μSAM in napari, including 3D segmentation and time‑lapse annotation.

Other napari plugins that use AI models

---

• Empanada (empanada-napari plugin) is designed for electron microscopy (EM) segmentation.

• Cellpose (cellpose-napari plugin), provides generalist deep‑learning segmentation for a wide range of microscopy images.

• Stardist (stardist-napari plugin) a popular model mainly for cell nuclei. It also has a napari wrapper - but again, not updated in a while unfortunately.

• Cellfinder (cellfinder-napari plugin), part of the BrainGlobe ecosystem, detects fluorescently labelled cells in large 3D images.

Key Points

• Classical image analysis methods often fail on label‑free images with subtle contrast.
• μSAM adapts Segment Anything Model (SAM) for microscopy and integrates it into napari, providing robust segmentation tools for biological images.
• μSAM supports area and point prompts, plus full image automatic segmentation.
• Initial embedding step can be slow, especially with larger models.

References

Archit, A., Freckmann, L., Nair, S., Khalid, N., Hilt, P., Rajashekar, V., Freitag, M., Teuber, C., Spitzner, M., Tapia Contreras, C., Buckley, G., von Haaren, S., Gupta, S., Grade, M., Wirth, M., Schneider, G., Dengel, A., Ahmed, S., & Pape, C. (2025). Segment Anything for Microscopy. Nature methods, 22(3), 579–591. https://doi.org/10.1038/s41592-024-02580-4

Edlund, C., Jackson, T. R., Khalid, N., Bevan, N., Dale, T., Dengel, A., Ahmed, S., Trygg, J., & Sjögren, R. (2021). LIVECell-A large-scale dataset for label-free live cell segmentation. Nature methods, 18(9), 1038–1045. https://doi.org/10.1038/s41592-021-01249-6
